Resource Filtering in Header

The header of the scheduler is a canvas and an opportunity for customization. You can add custom components and enable new interaction in context.

Such an example would be a custom filter block created with the help of a segmented control and placed between the standard UI components, which are:

  • Navigation component - <div mbsc-calendar-nav></div>. Use the .md-header-filter-controls CSS class for custom overrides.
  • Today button - <button mbsc-calendar-today></button>. Use the .md-header-filter-today CSS class for custom overrides.
  • Previous month button - <button mbsc-calendar-prev></button>. Use the .md-header-filter-prev CSS class for custom overrides.
  • Next month button - <button mbsc-calendar-next></button>. Use the .md-header-filter-next CSS class for custom overrides.

For changing the order the controls are laid out, you only need to set up the renderHeader.

Overriding the order for specific themes

For a custom order on a theme to theme basis, you will need to use a little CSS. Flex layout makes reordering easy. It's just a matter of setting the order in CSS. For material use the .mbsc-material, for windows the .mbsc-windows prefix and for iOS it is .mbsc-ios class. Eg.:

.mbsc-material .mds-header-filter-prev { order: 1; }
            .mbsc-material .mds-header-filter-next { order: 2; }
            .mbsc-material .mds-header-filter { order: 3; }
            .mbsc-material .mds-header-filter-today { order: 4; }
Want to style and reorder the header?  Take a look at the previous example →
Download and try example

Demo

Loading the live demo

Preview in full screen

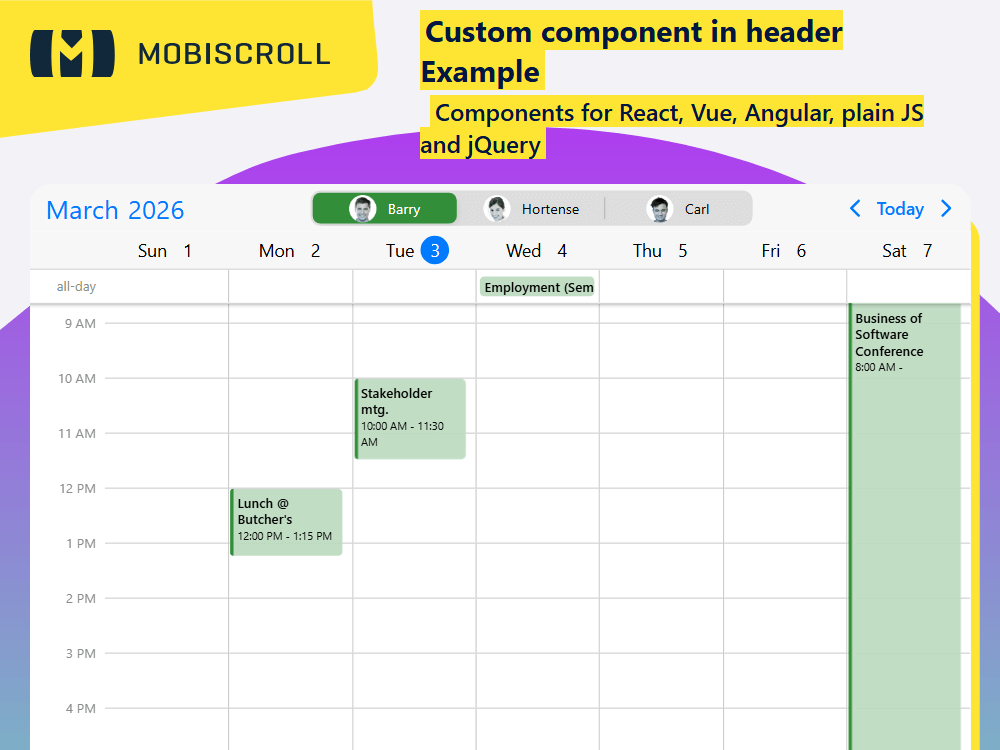

Add a segmented resource filter to the Scheduler header — place it between navigation buttons to let users switch resources inline.

Code

View code on GitHub
mobiscroll.setOptions({
  locale:  ,
  theme: ' ',
  themeVariant: ' '
});

var myEvents = [];

var myResources = [
  {
    id: 1,
    name: 'Barry',
    color: '#328e39',
    img: 'https://img.mobiscroll.com/demos/m1.png',
  },
  {
    id: 2,
    name: 'Hortense',
    color: '#00aabb',
    img: 'https://img.mobiscroll.com/demos/f1.png',
  },
  {
    id: 3,
    name: 'Carl',
    color: '#ea72c0',
    img: 'https://img.mobiscroll.com/demos/m2.png',
  },
];

var selectedResources = { 1: true };

var calendar = mobiscroll.eventcalendar('#demo-header-filter', {
  clickToCreate: false,
  dragToCreate: false,
  dragToMove: true,
  dragToResize: true,
  view: {
    scheduler: {
      type: 'week',
    },
  },
  renderHeader: function () {
    var header = '<div mbsc-calendar-nav class="mds-header-filter-nav"></div>' + '<div class="mds-header-filter mbsc-flex-1-0">';

    myResources.forEach(function (res) {
      header +=
        '<label class="mds-header-filter-' +
        res.id +
        '">' +
        '<img class="mds-header-filter-img" src="' +
        res.img +
        '"/>' +
        '<span class="mds-header-filter-name">' +
        res.name +
        '</span>' +
        '<input type="checkbox" mbsc-segmented name="resource" class="mds-header-filter-input" value="' +
        res.id +
        '" ' +
        (res.id === 1 ? 'checked' : '') +
        '>' +
        '</label>';
    });

    header +=
      '</div>' +
      '<button mbsc-calendar-prev class="mds-header-filter-prev"></button>' +
      '<button mbsc-calendar-today class="mds-header-filter-today"></button>' +
      '<button mbsc-calendar-next class="mds-header-filter-next"></button>';
    return header;
  },
});

mobiscroll.getJson(
  'https://trial.mobiscroll.com/custom-events/',
  function (events) {
    myEvents = events.map(function (e) {
      e.color = myResources.find(function (r) {
        return r.id === e.participant;
      }).color;
      return e;
    });
    var filteredEvents = myEvents.filter(function (e) {
      return selectedResources[e.participant];
    });

    calendar.setEvents(filteredEvents);
  },
  'jsonp',
);

document.querySelectorAll('.mds-header-filter-input').forEach(function (target) {
  target.addEventListener('change', function () {
    selectedResources[target.value] = target.checked;
    var resource = myResources.find(function (r) {
      return r.id === +target.value;
    });
    var filteredEvents = myEvents.filter(function (e) {
      return selectedResources[e.participant];
    });

    calendar.setEvents(filteredEvents);

    mobiscroll.toast({
      message: (target.checked ? 'Showing ' : 'Hiding ') + (resource ? resource.name : '') + ' events',
    });
  });
});
