React Event calendar Drag-and-Drop Task Presets

Use external draggable events to create preset tasks that people can quickly copy and spawn events from. A great example is a car wrapping shop where different jobs need to be set up depending on the type of vehicle.

Print a list of predefined tasks and initialize them as draggable elements. Enable externalDrop for the calendar and set up the predefined event skeletons for the draggable component.

Whenever there is more information to be captured, like detailed task notes, customer information, the name of the technician... you can trigger a popup with the task form in the onEventCreate lifecycle event. For failed drops (trying to schedule a task during lunch breaks or weekends) the onEventCreateFailed event will be triggered.

Want to see how external presets look & feel for a scheduler?  Check out this example →
Get started with this example

Demo

Loading the live demo

Preview in full screen

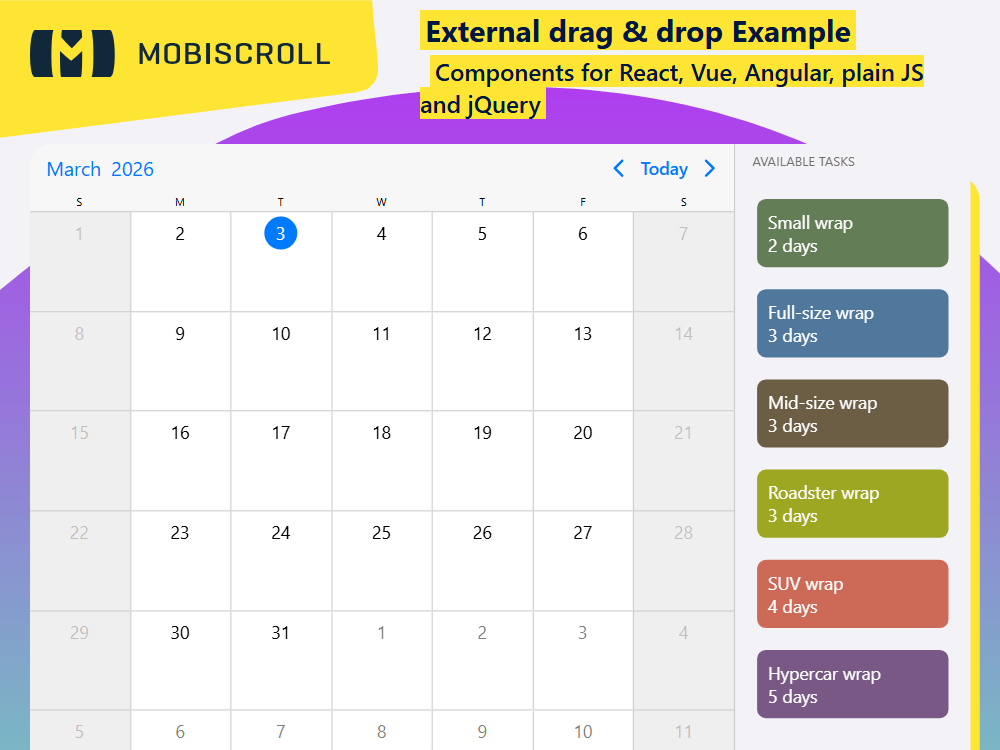

Drag preset task templates from an external list onto a event calendar — a popup form captures task details and technician at drop time.

Code

View code on GitHub
import { Draggable, Eventcalendar, Input, Popup, Select, setOptions, Textarea, Toast  } from '@mobiscroll/react';
import PropTypes from 'prop-types';
import { useCallback, useMemo, useState } from 'react';

setOptions({
  locale:  ,
  theme: ' ',
  themeVariant: ' '
});

function Task({ data }) {
  const [draggable, setDraggable] = useState();

  return (
    <div ref={setDraggable} style={{ background: data.color }} className="external-event-task">
      <div>{data.title}</div>
      <div>{data.length}</div>
      <Draggable dragData={data} element={draggable} />
    </div>
  );
}

Task.propTypes = {
  data: PropTypes.object.isRequired,
};

function App() {
  const [isOpen, setOpen] = useState(false);
  const [title, setTitle] = useState('');
  const [details, setDetails] = useState('');
  const [technician, setTechnician] = useState();
  const [anchor, setAnchor] = useState(null);
  const [isToastOpen, setToastOpen] = useState(false);
  const [toastMessage, setToastMessage] = useState();

  const myView = useMemo(() => ({ calendar: { labels: true } }), []);

  const myTasks = useMemo(
    () => [
      {
        title: 'Small wrap',
        color: '#637e57',
        start: '2026-11-07T00:00',
        end: '2026-11-08T00:00',
        length: '2 days',
      },
      {
        title: 'Full-size wrap',
        color: '#50789d',
        start: '2026-11-07T00:00',
        end: '2026-11-09T00:00',
        length: '3 days',
      },
      {
        title: 'Mid-size wrap',
        color: '#6c5d45',
        start: '2026-11-07T00:00',
        end: '2026-11-09T00:00',
        length: '3 days',
      },
      {
        title: 'Roadster wrap',
        color: '#9da721',
        start: '2026-11-07T00:00',
        end: '2026-11-09T00:00',
        length: '3 days',
      },
      {
        title: 'SUV wrap',
        color: '#cd6957',
        start: '2026-11-07T00:00',
        end: '2026-11-10T00:00',
        length: '4 days',
      },
      {
        title: 'Hypercar wrap',
        color: '#7a5886',
        start: '2026-11-07T00:00',
        end: '2026-11-11T00:00',
        length: '5 days',
      },
    ],
    [],
  );

  const myData = useMemo(
    () => [
      { value: '1', text: 'Roly Chester' },
      { value: '2', text: 'Tucker Wayne' },
      { value: '3', text: 'Baker Brielle' },
      { value: '4', text: 'Jami Walter' },
      { value: '5', text: 'Patrick Toby' },
      { value: '6', text: 'Tranter Logan' },
      { value: '7', text: 'Payton Sinclair' },
    ],
    [],
  );

  const myInvalid = useMemo(
    () => [
      {
        recurring: {
          repeat: 'weekly',
          weekDays: 'SA,SU',
        },
      },
    ],
    [],
  );

  const handleEventCreated = useCallback((args) => {
    setTitle(args.event.title);
    setDetails(args.event.details);
    setTechnician(args.event.technician);
    setAnchor(args.target);
    setOpen(true);
  }, []);

  const handleEventUpdateFailed = useCallback(() => {
    setToastMessage("Can't create event on this date");
    setToastOpen(true);
  }, []);

  const handlePopupClose = useCallback(() => {
    setOpen(false);
    setToastMessage('New task added');
    setToastOpen(true);
  }, []);

  const handleSelectChange = useCallback((event) => {
    setTechnician(event.value);
  }, []);

  const handleToastClose = useCallback(() => {
    setToastOpen(false);
  }, []);

  return (
    <div className="mbsc-grid mbsc-no-padding">
      <div className="mbsc-row">
        <div className="mbsc-col-sm-9 external-event-calendar">
          <Eventcalendar
            view={myView}
            invalid={myInvalid}
            dragToMove={true}
            externalDrop={true}
            onEventCreated={handleEventCreated}
            onEventCreateFailed={handleEventUpdateFailed}
            onEventUpdateFailed={handleEventUpdateFailed}
          />
        </div>
        <div className="mbsc-col-sm-3">
          <div className="mbsc-form-group-title">Available tasks</div>
          {myTasks.map((task, i) => (
            <Task key={i} data={task} />
          ))}
        </div>
        <Popup
          display="anchored"
          width={400}
          contentPadding={false}
          touchUi={false}
          headerText="Assign task"
          buttons={['ok']}
          anchor={anchor}
          isOpen={isOpen}
          onClose={handlePopupClose}
        >
          <div className="mbsc-form-group">
            <Input label="Task" defaultValue={title} readOnly></Input>
            <Textarea label="Details" defaultValue={details} placeholder="Add description..."></Textarea>
            <Select
              data={myData}
              value={technician}
              onChange={handleSelectChange}
              display="anchored"
              touchUi={false}
              label="Technician"
              inputProps={{ placeholder: 'Please select...' }}
            />
          </div>
        </Popup>
      </div>
      <Toast message={toastMessage} isOpen={isToastOpen} onClose={handleToastClose} />
    </div>
  );
}

export default App;
