Custom Range Picker View

The timeline comes with built-in support for day, week, month and year views. For those situations where a custom range makes more sense, it is possible to override the calendar navigation component with a range picker.

The calendar header can be easily customized and a two-way synchronization needs to be kept between the timeline and range picker.

Get started with this example

Demo

Loading the live demo

Preview in full screen

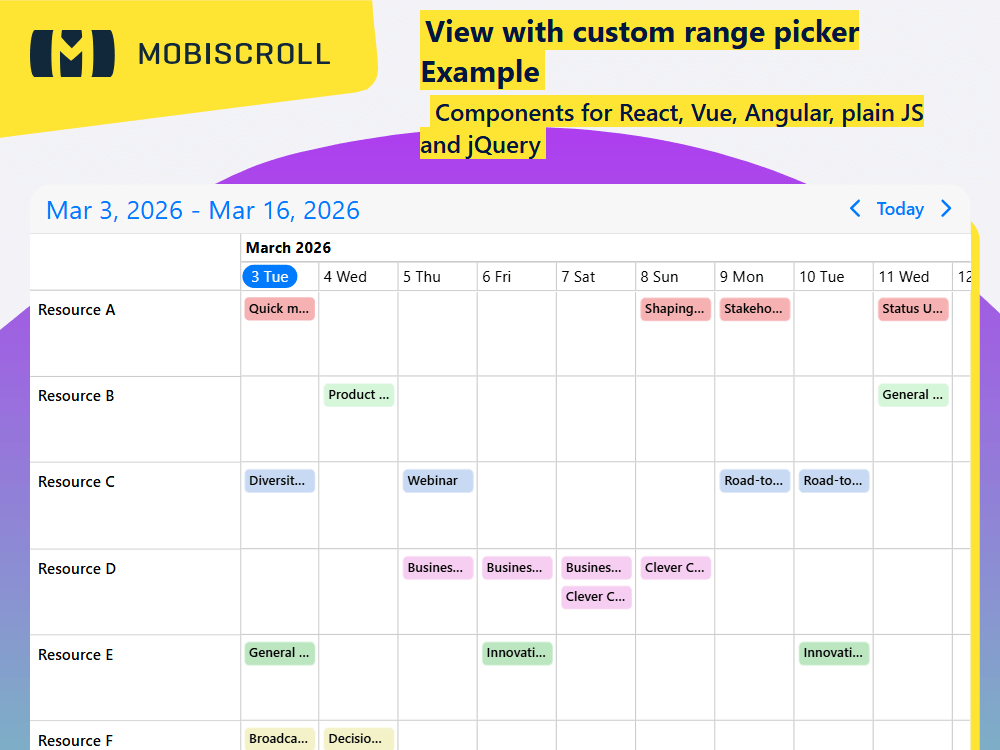

Replace the Timeline's default header navigation with a range picker — let users set any custom date range, synced two-way with the timeline.

Code

View code on GitHub
import { CommonModule } from '@angular/common';
import { HttpClient } from '@angular/common/http';
import { Component, OnInit } from '@angular/core';
import { FormsModule } from '@angular/forms';
import {
  formatDate,
  MbscCalendarEvent,
  MbscDateType,
  MbscEventcalendarOptions,
  MbscEventcalendarView,
  MbscModule,
  setOptions ,
} from '@mobiscroll/angular';

setOptions({
  locale:  ,
  theme: ' ',
  themeVariant: ' '
});

@Component({
  selector: 'app-root',
  templateUrl: './app.component.html',
  standalone: true,
  imports: [CommonModule, FormsModule, MbscModule],
})
export class AppComponent implements OnInit {
  constructor(private http: HttpClient) {}
  startDate!: Date;
  endDate!: Date;
  refDate!: Date;
  selectedDate: MbscDateType = new Date();
  rangeValue: any = [];
  rangeText = '';

  myEvents: MbscCalendarEvent[] = [];
  view = 'calendar';
  calView: MbscEventcalendarView = {
    timeline: {
      type: 'day',
      size: 14,
      eventDisplay: 'fill',
    },
  };

  calendarOptions: MbscEventcalendarOptions = {
    resources: [
      {
        id: 1,
        name: 'Resource A',
        color: '#e20000',
      },
      {
        id: 2,
        name: 'Resource B',
        color: '#76e083',
      },
      {
        id: 3,
        name: 'Resource C',
        color: '#4981d6',
      },
      {
        id: 4,
        name: 'Resource D',
        color: '#e25dd2',
      },
      {
        id: 5,
        name: 'Resource E',
        color: '#1dab2f',
      },
      {
        id: 6,
        name: 'Resource F',
        color: '#d6d145',
      },
    ],
    onPageLoaded: (args) => {
      const end = args.lastDay;
      this.startDate = args.firstDay;
      this.endDate = new Date(end.getFullYear(), end.getMonth(), end.getDate() - 1, 0);

      setTimeout(() => {
        // Set button text
        this.rangeText = this.getFormattedRange(this.startDate, this.endDate);
        // Set range value
        this.rangeValue = [this.startDate, this.endDate];
        // Navigate the calendar
        this.selectedDate = this.startDate;
      });
    },
  };

  onClose(): void {
    const date = this.rangeValue;
    if (date[0] && date[1]) {
      // Navigate the calendar
      this.selectedDate = date[0];
      this.startDate = date[0];
      this.endDate = date[1];
      // Set calendar view
      this.refDate = date[0];
      this.calView = {
        timeline: {
          type: 'day',
          size: this.getNrDays(date[0], date[1]),
          eventDisplay: 'fill',
        },
      };
    } else {
      this.rangeValue = [this.startDate, this.endDate];
    }
  }

  // Returns the formatted date
  getFormattedRange(start: any, end: any): string {
    return (
      formatDate('MMM D, YYYY', new Date(start)) +
      (end && this.getNrDays(start, end) > 1 ? ' - ' + formatDate('MMM D, YYYY', new Date(end)) : '')
    );
  }

  // Returns the number of days between two dates
  getNrDays(start: any, end: any): number {
    return Math.round(Math.abs((end.setHours(0) - start.setHours(0)) / (24 * 60 * 60 * 1000))) + 1;
  }

  ngOnInit(): void {
    this.http
      .jsonp<MbscCalendarEvent[]>('https://trial.mobiscroll.com/timeline-events/?vers=5', 'callback')
      .subscribe((resp: MbscCalendarEvent[]) => {
        this.myEvents = resp;
      });
  }
}
