External Date Navigation

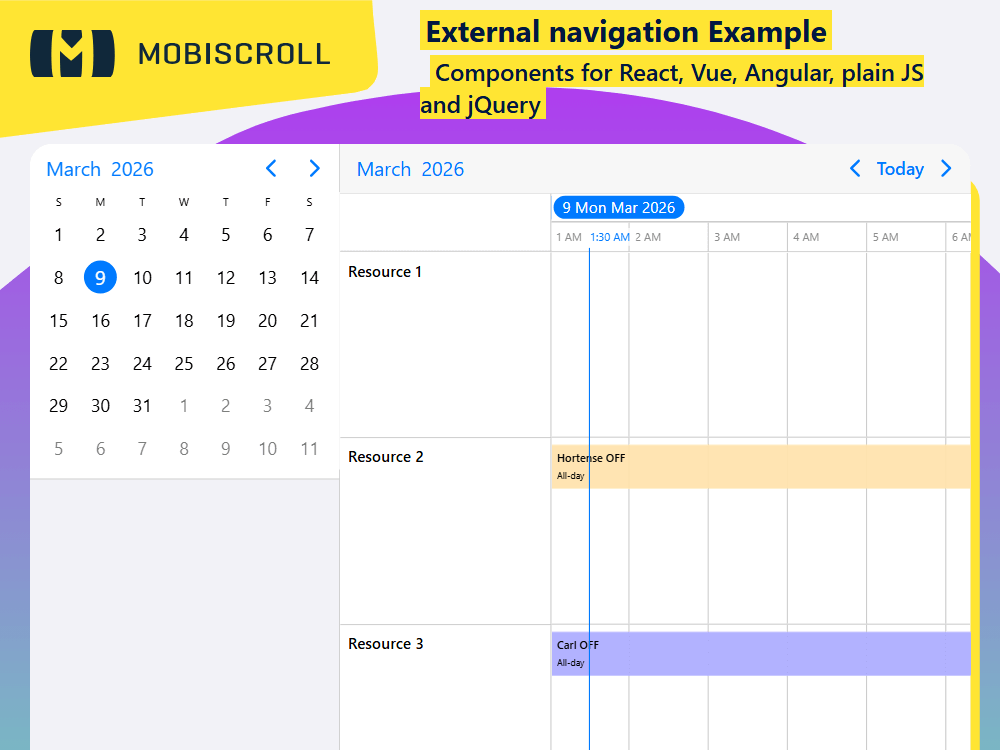

This example demonstrates how can the Timeline navigated externally. Here we have a two-pane layout with a Datepicker on the left and a Timeline on the right. Changing date on the Datepicker will trigger the date change on the Timeline.

The Datepicker and the Timeline binds to the same selected value which makes sure that the displayed dates will be in sync in both of the components. The Datepicker uses the ngModel binding and the Timeline its selectedDate option to update the displayed date on the view.

Get started with this example

Demo

Loading the live demo

Preview in full screen

Use a two-panel Timeline navigated by an external date picker — selecting a date syncs the timeline and the picker instantly.

Code

View code on GitHub
import { CommonModule } from '@angular/common';
import { HttpClient } from '@angular/common/http';
import { Component, OnInit } from '@angular/core';
import { FormsModule } from '@angular/forms';
import {
  MbscCalendarEvent,
  MbscDateType,
  MbscEventcalendarView,
  MbscModule,
  MbscResource,
  setOptions ,
} from '@mobiscroll/angular';

setOptions({
  locale:  ,
  theme: ' ',
  themeVariant: ' '
});

@Component({
  selector: 'app-root',
  templateUrl: './app.component.html',
  standalone: true,
  imports: [CommonModule, FormsModule, MbscModule],
})
export class AppComponent implements OnInit {
  constructor(private http: HttpClient) {}

  dayView: MbscEventcalendarView = { timeline: { type: 'day' } };
  myEvents: MbscCalendarEvent[] = [];
  selectedDate: MbscDateType = new Date();
  myResources: MbscResource[] = [
    { id: 1, name: 'Resource 1', color: 'red' },
    { id: 2, name: 'Resource 2', color: 'orange' },
    { id: 3, name: 'Resource 3', color: 'blue' },
  ];

  ngOnInit(): void {
    this.http.jsonp<MbscCalendarEvent[]>('https://trial.mobiscroll.com/filter-resource-events/', 'callback').subscribe((resp) => {
      this.myEvents = resp;
    });
  }
}
