Event Appearance & Time Buffers

Events can be customized through the timelineEventTemplate. How the events look are fully up to you. Base event fields along with custom fields can be accessed when writing the event template.

The before/after buffers can help you visualise delays or added minutes for tasks. For example travel time for meetings/appointments, check in/check out for flights.

Templating the buffers are handled through the bufferBeforeTemplate and bufferAfterTemplate options.

Want to see how custom event rendering looks on the time grid?  Check out this example →
Get started with this example

Demo

Loading the live demo

Preview in full screen

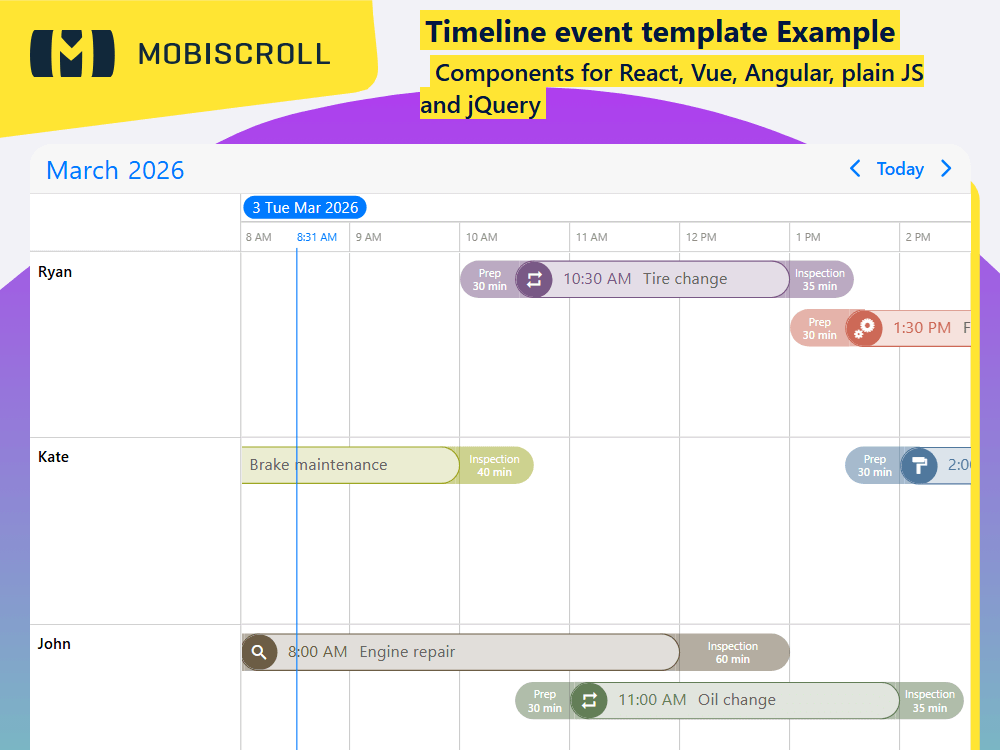

Customize event layouts on a Timeline with icons, labels, and colors — visualize before/after buffers for travel, prep, or inspection workflows.

Code

View code on GitHub
import { CommonModule } from '@angular/common';
import { Component } from '@angular/core';
import { MbscCalendarEvent, MbscEventcalendarView, MbscModule, setOptions  } from '@mobiscroll/angular';

setOptions({
  locale:  ,
  theme: ' ',
  themeVariant: ' '
});

@Component({
  selector: 'app-root',
  templateUrl: './app.component.html',
  standalone: true,
  imports: [CommonModule, MbscModule],
})
export class AppComponent {
  view: MbscEventcalendarView = {
    timeline: {
      type: 'day',
    },
  };

  myEvents: MbscCalendarEvent[] = [
    {
      bufferBefore: 30,
      bufferAfter: 35,
      start: '2026-10-22T10:30',
      end: '2026-10-22T13:00',
      title: 'Tire change',
      color: '#7a5886',
      taskType: 'material-repeat',
      resource: 1,
    },
    {
      bufferAfter: 40,
      bufferBefore: 30,
      start: '2026-10-22T07:00',
      end: '2026-10-22T10:00',
      title: 'Brake maintenance',
      color: '#9da721',
      taskType: 'cogs',
      resource: 2,
    },
    {
      bufferAfter: 45,
      bufferBefore: 30,
      start: '2026-10-22T13:30',
      end: '2026-10-22T16:30',
      title: 'Fluid maintenance',
      color: '#cd6957',
      taskType: 'cogs',
      resource: 1,
    },
    {
      bufferAfter: 35,
      bufferBefore: 30,
      start: '2026-10-22T11:00',
      end: '2026-10-22T14:00',
      title: 'Oil change',
      color: '#637e57',
      taskType: 'material-repeat',
      resource: 3,
    },
    {
      bufferAfter: 60,
      bufferBefore: 30,
      start: '2026-10-22T08:00',
      end: '2026-10-22T12:00',
      title: 'Engine repair',
      color: '#6c5d45',
      taskType: 'material-search',
      resource: 3,
    },
    {
      bufferAfter: 45,
      bufferBefore: 30,
      start: '2026-10-22T14:00',
      end: '2026-10-22T19:00',
      title: 'Car painting',
      color: '#50789d',
      taskType: 'material-format-paint',
      resource: 2,
    },
  ];

  myResources = [
    {
      id: 1,
      name: 'Ryan',
      color: '#239a21',
    },
    {
      id: 2,
      name: 'Kate',
      color: '#01adff',
    },
    {
      id: 3,
      name: 'John',
      color: '#ff0101',
    },
  ];

  myDefaultEvent() {
    return {
      taskType: 'cogs',
      bufferAfter: 60,
      bufferBefore: 30,
    };
  }
}
