React Timeline Calendar Zoom Levels

The timeline provides a continuous rendering of events across short and long periods of time. To simplify working with many different types of events that are rendered through various stretches of time, being able to zoom in and out is essential.

Through the zoomLevel option it is possible to switch between different predefined levels of granularity. Depending on what you are trying to accomplish, any number of levels can be specified in the zoomLevels property, controlling settings ranging from horizontal resolution, page type and size to column widths.

Combined with the flexibility of templating capabilities of the event calendar header , you can add buttons, sliders to the calendar or manage everything from external controls.

Dynamically zooming in and out will always keep a virtual reference point in the middle of the timeline for a smooth visual experience.

Get started with this example

Demo

Loading the live demo

Preview in full screen

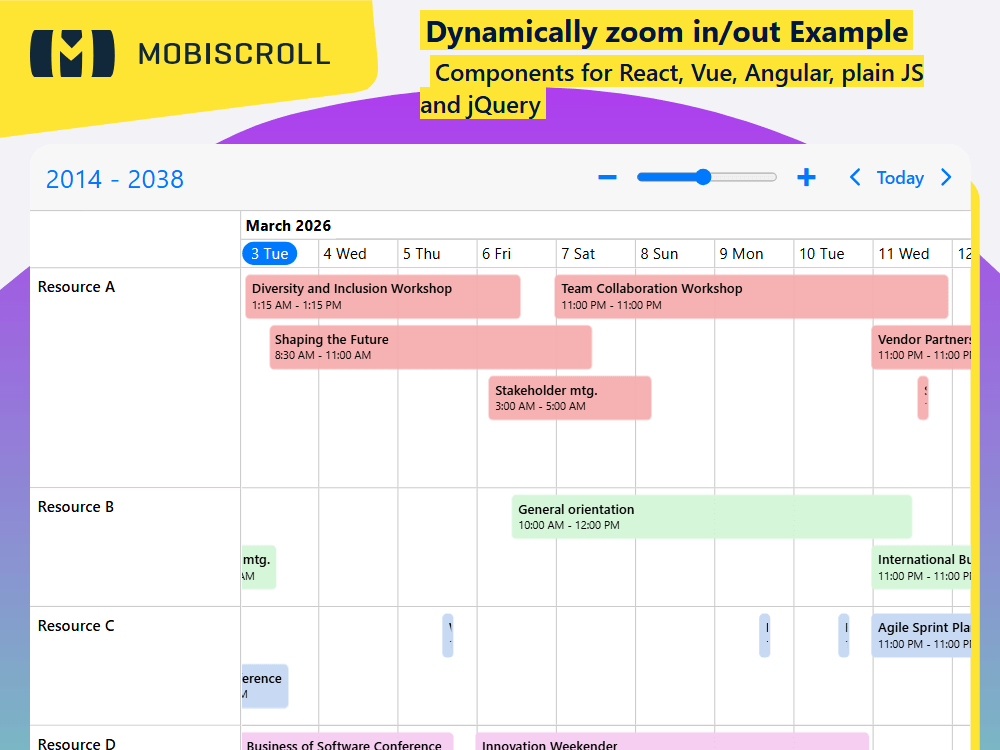

Add zoom controls to a resource timeline to switch from day/hour detail to monthly/yearly overviews— keeping events centered as the view changes.

Code

View code on GitHub
import {
  Button,
  CalendarNav,
  CalendarNext,
  CalendarPrev,
  CalendarToday,
  Eventcalendar,
  getJson,
  setOptions ,
} from '@mobiscroll/react';
import { useCallback, useEffect, useMemo, useRef, useState } from 'react';

setOptions({
  locale:  ,
  theme: ' ',
  themeVariant: ' '
});

function App() {
  const [myEvents, setEvents] = useState([]);
  const [zoomLevel, setZoomLevel] = useState(9);
  const [viewDate, setViewDate] = useState(new Date());

  const calRef = useRef(null);

  const myResources = useMemo(
    () => [
      { id: 1, name: 'Resource A', color: '#e20000' },
      { id: 2, name: 'Resource B', color: '#76e083' },
      { id: 3, name: 'Resource C', color: '#4981d6' },
      { id: 4, name: 'Resource D', color: '#e25dd2' },
      { id: 5, name: 'Resource E', color: '#1dab2f' },
      { id: 6, name: 'Resource F', color: '#d6d145' },
    ],
    [],
  );

  const myView = useMemo(
    () => ({
      timeline: {
        zoomLevels: {
          1: { type: 'year', size: 25, resolutionHorizontal: 'year', columnWidth: 'small' },
          2: { type: 'year', size: 25, resolutionHorizontal: 'year', columnWidth: 'xlarge' },
          3: { type: 'year', size: 25, resolutionHorizontal: 'quarter', columnWidth: 'small' },
          4: { type: 'year', size: 25, resolutionHorizontal: 'quarter', columnWidth: 'xlarge' },
          5: { type: 'year', size: 25, resolutionHorizontal: 'month', columnWidth: 'medium' },
          6: { type: 'year', size: 25, resolutionHorizontal: 'month', columnWidth: 'xxxlarge' },
          7: { type: 'year', size: 25, resolutionHorizontal: 'week', columnWidth: 'medium' },
          8: { type: 'year', size: 25, resolutionHorizontal: 'week', columnWidth: 'xxxlarge' },
          9: { type: 'year', size: 25, resolutionHorizontal: 'day', columnWidth: 'small' },
          10: { type: 'year', size: 25, resolutionHorizontal: 'day', columnWidth: 'xlarge' },
          11: {
            type: 'year',
            size: 3,
            resolutionHorizontal: 'hour',
            columnWidth: 'xlarge',
            timeCellStep: 720,
            timeLabelStep: 720,
          },
          12: {
            type: 'year',
            size: 3,
            resolutionHorizontal: 'hour',
            columnWidth: 'xlarge',
            timeCellStep: 360,
            timeLabelStep: 360,
          },
          13: {
            type: 'year',
            size: 3,
            resolutionHorizontal: 'hour',
            columnWidth: 'xlarge',
            timeCellStep: 180,
            timeLabelStep: 180,
          },
          14: {
            type: 'year',
            size: 3,
            resolutionHorizontal: 'hour',
            columnWidth: 'medium',
            timeCellStep: 60,
            timeLabelStep: 60,
          },
          15: {
            type: 'month',
            size: 3,
            resolutionHorizontal: 'hour',
            timeCellStep: 30,
            timeLabelStep: 30,
            columnWidth: 'medium',
          },
          16: {
            type: 'month',
            size: 3,
            resolutionHorizontal: 'hour',
            timeCellStep: 30,
            timeLabelStep: 30,
            columnWidth: 'xxxlarge',
          },
          17: {
            type: 'month',
            size: 3,
            resolutionHorizontal: 'hour',
            timeCellStep: 15,
            timeLabelStep: 15,
            columnWidth: 'xxxlarge',
          },
          18: {
            type: 'month',
            size: 3,
            resolutionHorizontal: 'hour',
            timeCellStep: 5,
            timeLabelStep: 5,
            columnWidth: 'large',
          },
        },
      },
    }),
    [],
  );

  const refDate = useMemo(() => {
    if (zoomLevel < 11) {
      return new Date(viewDate.getFullYear() - 12, 0, 1);
    }
    if (zoomLevel < 15) {
      return new Date(viewDate.getFullYear() - 1, 0, 1);
    }
    return new Date(viewDate.getFullYear(), viewDate.getMonth() - 1, 1);
  }, [viewDate, zoomLevel]);

  const zoomIn = useCallback(() => {
    setZoomLevel((prevZoom) => prevZoom + 1);
    setViewDate(calRef.current.getViewDate());
  }, []);

  const zoomOut = useCallback(() => {
    setZoomLevel((prevZoom) => prevZoom - 1);
    setViewDate(calRef.current.getViewDate());
  }, []);

  const handleSliderChange = useCallback((ev) => {
    setZoomLevel(+ev.target.value);
    setViewDate(calRef.current.getViewDate());
  }, []);

  const myHeader = useCallback(
    () => (
      <>
        <CalendarNav />
        <div className="mbsc-flex mbsc-flex-1-0 mbsc-justify-content-end">
          <Button onClick={zoomOut} disabled={zoomLevel === 1} icon="minus" variant="flat" />
          <input type="range" value={zoomLevel} min="1" max="18" onChange={handleSliderChange} />
          <Button onClick={zoomIn} disabled={zoomLevel === 18} icon="plus" variant="flat" />
        </div>
        <CalendarPrev />
        <CalendarToday />
        <CalendarNext />
      </>
    ),
    [handleSliderChange, zoomIn, zoomOut, zoomLevel],
  );

  useEffect(() => {
    getJson(
      'https://trial.mobiscroll.com/timeline-zoom-events/',
      (events) => {
        setEvents(events);
      },
      'jsonp',
    );
  }, []);

  return (
    <Eventcalendar
      clickToCreate={ }
      dragToCreate={ }
      dragToMove={ }
      dragToResize={ }
      eventDelete={ }
      data={myEvents}
      ref={calRef}
      refDate={refDate}
      resources={myResources}
      view={myView}
      zoomLevel={zoomLevel}
      renderHeader={myHeader}
    />
  );
}

export default App;
