Dynamic Resource Sort

For advanced resource sorting and ordering calculations, sorting just by resource properties might not be enough. In those situations you can provide a modal or popup that is invoked either from outside of the calendar or from within the calendar header itself and you can get as sophisticated as you have to.

In this example trucks are listed as resources along with the scheduled tours as events. The sort popup that can be invoked from the header through templating allows you to perform calculations based on truck parameters and tour events. Once the calculation options are selected, the resulting metrics are displayed in the resources column, dynamically updating to reflect the results using the renderResource templating option.

Since the tours affect the resource order, on new event creation or reassignment a snackbar is shown with a 3 second timer and a "Sort now" button for an instant order update.

Get started with this example

Demo

Loading the live demo

Preview in full screen

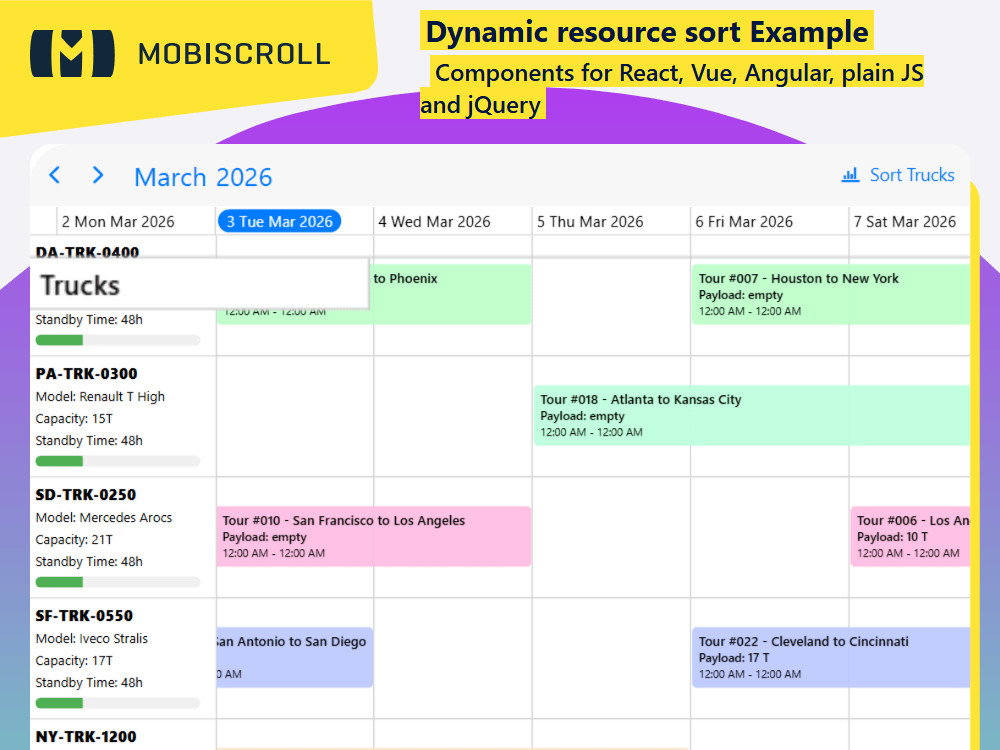

Sort Timeline resources by metrics — header popup ranks trucks by standby time, payload efficiency, or deadhead, with instant reorder on event changes.

Code

View code on GitHub
import {
  Button,
  CalendarNav,
  CalendarNext,
  CalendarPrev,
  Eventcalendar,
  Popup,
  Radio,
  RadioGroup,
  Segmented,
  SegmentedGroup,
  setOptions,
  Snackbar,
  Toast ,
} from '@mobiscroll/react';
import { useCallback, useEffect, useMemo, useRef, useState } from 'react';

setOptions({
  locale:  ,
  theme: ' ',
  themeVariant: ' '
});

function App() {
  const [myEvents, setMyEvents] = useState([
    {
      start: '2026-10-19T00:00',
      end: '2026-10-23T00:00',
      title: 'Tour #013 - Miami to Seattle',
      resource: 1,
      color: '#FF9933',
      payload: 25,
    },
    {
      start: '2026-10-21T00:00',
      end: '2026-10-23T00:00',
      title: 'Tour #014 - Denver to Boston',
      resource: 2,
      color: '#33FFA6',
      payload: 18,
    },
    {
      start: '2026-10-20T00:00',
      end: '2026-10-23T00:00',
      title: 'Tour #015 - Orlando to Austin',
      resource: 3,
      color: '#9933FF',
      payload: 20,
    },
    {
      start: '2026-10-21T00:00',
      end: '2026-10-24T00:00',
      title: 'Tour #016 - Detroit to Baltimore',
      resource: 4,
      color: '#33A6FF',
      payload: 0,
    },
    {
      start: '2026-10-22T00:00',
      end: '2026-10-25T00:00',
      title: 'Tour #017 - Las Vegas to Portland',
      resource: 5,
      color: '#FF5733',
      payload: 20,
    },
    {
      start: '2026-10-22T00:00',
      end: '2026-10-25T00:00',
      title: 'Tour #018 - Atlanta to Kansas City',
      resource: 6,
      color: '#33FF99',
      payload: 0,
    },
    {
      start: '2026-10-16T11:00',
      end: '2026-10-20T00:00',
      title: 'Tour #018 - Dallas to Atlanta',
      resource: 6,
      color: '#33FF99',
      payload: 14,
    },
    {
      start: '2026-10-20T00:00',
      end: '2026-10-24T00:00',
      title: 'Tour #019 - Charlotte to Indianapolis',
      resource: 7,
      color: '#FF5733',
      payload: 22,
    },
    {
      start: '2026-10-20T00:00',
      end: '2026-10-22T00:00',
      title: 'Tour #005 - Dallas to San Francisco',
      resource: 7,
      color: '#FF5733',
      payload: 18,
    },
    {
      start: '2026-10-24T00:00',
      end: '2026-10-26T00:00',
      title: 'Tour #001 - New York to Los Angeles',
      resource: 7,
      color: '#FF5733',
      payload: 20,
    },
    {
      start: '2026-10-20T00:00',
      end: '2026-10-22T00:00',
      title: 'Tour #009 - San Diego to Dallas',
      resource: 7,
      color: '#FF5733',
      payload: 16,
    },
    {
      start: '2026-10-24T00:00',
      end: '2026-10-26T00:00',
      title: 'Tour #006 - Los Angeles to Chicago',
      resource: 8,
      color: '#FF33A6',
      payload: 10,
    },
    {
      start: '2026-10-18T00:00',
      end: '2026-10-22T00:00',
      title: 'Tour #010 - San Francisco to Los Angeles',
      resource: 8,
      color: '#FF33A6',
      payload: 0,
    },
    {
      start: '2026-10-23T00:00',
      end: '2026-10-26T00:00',
      title: 'Tour #007 - Houston to New York',
      resource: 9,
      color: '#33FF57',
      payload: 0,
    },
    {
      start: '2026-10-20T00:00',
      end: '2026-10-22T00:00',
      title: 'Tour #003 - Philadelphia to Phoenix',
      resource: 9,
      color: '#33FF57',
      payload: 0,
    },
    {
      start: '2026-10-16T00:00',
      end: '2026-10-19T00:00',
      title: 'Tour #028 - Trenton to Philadelphia',
      resource: 9,
      color: '#33FF57',
      payload: 11,
    },
    {
      start: '2026-10-16T00:00',
      end: '2026-10-21T00:00',
      title: 'Tour #004 - San Antonio to San Diego',
      resource: 10,
      color: '#3357FF',
      payload: 15,
    },

    {
      start: '2026-10-23T00:00',
      end: '2026-10-26T00:00',
      title: 'Tour #022 - Cleveland to Cincinnati',
      resource: 10,
      color: '#3357FF',
      payload: 17,
    },
    {
      start: '2026-10-16T00:00',
      end: '2026-10-21T00:00',
      title: 'Tour #023 - Boston to Philadelphia',
      resource: 11,
      color: '#FF9933',
      payload: 19,
    },
    {
      start: '2026-10-20T00:00',
      end: '2026-10-22T00:00',
      title: 'Tour #024 - Las Vegas to San Diego',
      resource: 12,
      color: '#33FF57',
      payload: 28,
    },
    {
      start: '2026-10-17T00:00',
      end: '2026-10-20T00:00',
      title: 'Tour #025 - Miami to Charlotte',
      resource: 13,
      color: '#9933FF',
      payload: 26,
    },
    {
      start: '2026-10-22T00:00',
      end: '2026-10-25T00:00',
      title: 'Tour #026 - Seattle to Portland',
      resource: 14,
      color: '#33A6FF',
      payload: 12,
    },
    {
      start: '2026-10-19T00:00',
      end: '2026-10-22T00:00',
      title: 'Tour #027 - Atlanta to Orlando',
      resource: 15,
      color: '#FF5733',
      payload: 17,
    },
  ]);

  const myResources = useMemo(
    () => [
      { id: 1, name: 'NY-TRK-1200', capacity: 25, location: 'New York', model: 'Renault Magnum' },
      { id: 2, name: 'LA-TRK-0090', capacity: 18, location: 'Los Angeles', model: 'Mercedes Actros' },
      { id: 3, name: 'CH-TRK-0700', capacity: 22, location: 'Phoenix', model: 'Scania R500' },
      { id: 4, name: 'HO-TRK-0850', capacity: 28, location: 'Houston', model: 'Volvo FH16' },
      { id: 5, name: 'PH-TRK-0900', capacity: 24, location: 'Chicago', model: 'MAN TGX' },
      { id: 6, name: 'PA-TRK-0300', capacity: 15, location: 'Philadelphia', model: 'Renault T High' },
      { id: 8, name: 'SD-TRK-0250', capacity: 21, location: 'San Francisco', model: 'Mercedes Arocs' },
      { id: 9, name: 'DA-TRK-0400', capacity: 20, location: 'Dallas', model: 'DAF XF' },
      { id: 10, name: 'SF-TRK-0550', capacity: 17, location: 'San Diego', model: 'Iveco Stralis' },
      { id: 11, name: 'BO-TRK-1100', capacity: 23, location: 'Boston', model: 'Kenworth T680' },
      { id: 12, name: 'LV-TRK-2200', capacity: 30, location: 'Las Vegas', model: 'Volvo FH16' },
      { id: 13, name: 'MI-TRK-3300', capacity: 26, location: 'Miami', model: 'Peterbilt 579' },
      { id: 14, name: 'SE-TRK-4400', capacity: 16, location: 'Seattle', model: 'Mack Anthem' },
      { id: 15, name: 'AT-TRK-5500', capacity: 19, location: 'Atlanta', model: 'Renault Magnum' },
    ],
    [],
  );

  const [isPopupOpen, setPopupOpen] = useState(false);
  const [isSnackbarOpen, setSnackbarOpen] = useState(false);
  const [isToastOpen, setToastOpen] = useState(false);
  const [popupAnchor, setPopupAnchor] = useState();
  const [sortRequest, setSortRequest] = useState(0);
  const [snackbarKey, setSnackbarKey] = useState(0);
  const [sortedResources, setResources] = useState(myResources);
  const [tempSortColumn, setTempSortColumn] = useState();
  const [tempSortDirection, setTempSortDirection] = useState();

  const buttonRef = useRef();
  const calRef = useRef();
  const metricBarAnimation = useRef(true);
  const sortColumn = useRef('standby');
  const sortDirection = useRef('asc');
  const tempEvent = useRef();
  const weekStart = useRef();
  const weekEnd = useRef();

  const myView = useMemo(() => ({ timeline: { type: 'week', resolutionHorizontal: 'day' } }), []);

  const sortColumnLabels = useMemo(
    () => ({
      standby: 'Standby Time',
      payload: 'Payload Efficiency',
      deadhead: 'Deadhead Time',
    }),
    [],
  );

  const calcMetrics = useCallback(() => {
    const loadedEvents = calRef.current ? calRef.current.getEvents() : [];

    myResources.forEach((resource) => {
      let standby = 168;
      let deadhead = 0;
      let payload = 0;
      let numberOfTours = 0;

      const resourceEvents = loadedEvents.filter((event) => event.resource === resource.id);

      resourceEvents.forEach((event) => {
        const eventStart = new Date(event.start);
        const eventEnd = new Date(event.end);
        const effectiveStart = eventStart < weekStart.current ? weekStart.current : eventStart;
        const effectiveEnd = eventEnd > weekEnd.current ? weekEnd.current : eventEnd;

        if (effectiveStart < effectiveEnd) {
          standby -= (effectiveEnd - effectiveStart) / (1000 * 60 * 60);
        }

        if (effectiveStart < effectiveEnd && (!event.payload || event.payload <= 0)) {
          deadhead += (effectiveEnd - effectiveStart) / (1000 * 60 * 60);
        }

        if (eventEnd > weekStart.current && eventStart < weekEnd.current) {
          numberOfTours++;
          payload += event.payload || 0;
        }
      });

      resource.standby = standby;
      resource.deadhead = deadhead;
      resource.payload = numberOfTours && resource.capacity ? Math.round((payload / numberOfTours / resource.capacity) * 100) : 0;
    });
  }, [myResources]);

  const sortResources = useCallback(() => {
    metricBarAnimation.current = true;
    const updatedResources = [...myResources].sort((resource1, resource2) => {
      let col = sortColumn.current;
      if (resource1[col] === resource2[col]) {
        col = 'name';
      }
      return sortDirection.current === 'asc' ? (resource1[col] > resource2[col] ? 1 : -1) : resource1[col] < resource2[col] ? 1 : -1;
    });
    setResources(updatedResources);
    setTimeout(() => {
      metricBarAnimation.current = false;
    }, 100);
  }, [myResources, sortColumn, sortDirection]);

  const delayedSort = useCallback((event) => {
    tempEvent.current = event;
    setSnackbarOpen(false);
    setSortRequest((prevRequest) => prevRequest + 1);
  }, []);

  const popupButtons = useMemo(
    () => [
      'cancel',
      {
        text: 'Apply',
        keyCode: 'enter',
        cssClass: 'mbsc-popup-button-primary',
        handler: function () {
          setPopupOpen(false);
          setToastOpen(true);
          sortColumn.current = tempSortColumn;
          sortDirection.current = tempSortDirection;
          sortResources();
        },
      },
    ],
    [sortResources, tempSortColumn, tempSortDirection],
  );

  const snackbarButton = useMemo(() => ({ text: 'Sort now' }), []);

  const handleSnackbarClose = useCallback(() => {
    setSnackbarOpen(false);
    const event = tempEvent.current;
    const resource = myResources.find((resource) => resource.id === event.resource);
    const eventStart = new Date(event.start);
    const navStart = eventStart < weekStart.current ? weekStart.current : eventStart;
    sortResources();
    calRef.current.navigateToEvent({ start: navStart, resource: event.resource });
    resource.cssClass = 'mbsc-timeline-parent-hover';
    setTimeout(() => {
      resource.cssClass = '';
      setResources((prevResources) => prevResources.slice());
    }, 1000);
  }, [myResources, sortResources]);

  const handlePopupOpen = useCallback(() => {
    setTempSortColumn(sortColumn.current);
    setTempSortDirection(sortDirection.current);
    setPopupAnchor(buttonRef.current.nativeElement);
    setPopupOpen(true);
  }, []);

  const handlePopupClose = useCallback(() => {
    setPopupOpen(false);
  }, []);

  const handleToastClose = useCallback(() => {
    setToastOpen(false);
  }, []);

  const handlePageLoading = useCallback(
    (args) => {
      weekStart.current = args.firstDay;
      weekEnd.current = args.lastDay;
      setTimeout(() => {
        calcMetrics();
        sortResources();
      });
    },
    [calcMetrics, sortResources],
  );

  const handleEventCreated = useCallback(
    (args) => {
      args.event.payload = Math.floor(Math.random() * (17 - 5 + 1)) + 5;
      setMyEvents((prevEvents) => [...prevEvents, args.event]);
      calcMetrics();
      delayedSort(args.event);
    },
    [calcMetrics, delayedSort],
  );

  const handleEventDeleted = useCallback(
    (args) => {
      calcMetrics();
      delayedSort(args.event.resource, args.event);
    },
    [calcMetrics, delayedSort],
  );

  const handleEventUpdated = useCallback(
    (args) => {
      const oldEventStart = new Date(args.oldEvent.start);
      const oldEventEnd = new Date(args.oldEvent.end);
      if (
        +oldEventStart !== +args.event.start &&
        +oldEventEnd !== +args.event.end &&
        oldEventStart >= weekStart.current &&
        oldEventEnd <= weekEnd.current &&
        args.event.start >= weekStart.current &&
        args.event.end <= weekEnd.current &&
        args.oldEvent.resource === args.event.resource
      ) {
        return;
      }
      calcMetrics();
      delayedSort(args.event);
    },
    [calcMetrics, delayedSort],
  );

  const handleSortColumnChange = useCallback((ev) => {
    setTempSortColumn(ev.target.value);
  }, []);

  const handleSortDirectionChange = useCallback((ev) => {
    setTempSortDirection(ev.target.value);
  }, []);

  const myCustomHeader = useCallback(
    () => (
      <>
        <CalendarPrev />
        <CalendarNext />
        <CalendarNav />
        <div className="mbsc-flex mbsc-flex-1-1 mbsc-justify-content-end">
          <Button ref={buttonRef} startIcon="bars" variant="flat" onClick={handlePopupOpen}>
            Sort Trucks
          </Button>
        </div>
      </>
    ),
    [handlePopupOpen],
  );

  const myCustomResourceHeader = useCallback(() => <div className="mds-popup-sort-resource-header">Trucks</div>, []);

  const myCustomResource = useCallback(
    (resource) => {
      const metricValue = resource[sortColumn.current];
      const barValue = sortColumn.current === 'payload' ? metricValue : (metricValue / 168) * 100;
      const barColor = barValue <= 33 ? 'green' : barValue <= 66 ? 'yellow' : 'red';

      return (
        <div className="mds-popup-sort-resource-cell">
          <strong>{resource.name}</strong>
          <div className="mds-popup-sort-resource-attr">Model: {resource.model}</div>
          <div className="mds-popup-sort-resource-attr">Capacity: {resource.capacity}T</div>
          <div className="mds-popup-sort-resource-attr">
            {sortColumnLabels[sortColumn.current]}: {metricValue}
            {sortColumn.current === 'payload' ? '%' : 'h'}
          </div>
          <div className="mds-popup-sort-bar-track">
            <div
              className={`mds-popup-sort-bar mds-popup-sort-bar-${barColor}${
                metricBarAnimation.current ? ' mds-popup-sort-bar-animation' : ''
              }`}
              style={{ width: `${barValue}%` }}
            ></div>
          </div>
        </div>
      );
    },
    [metricBarAnimation, sortColumnLabels],
  );

  const myScheduleEvent = useCallback(
    (event) => (
      <>
        <div>{event.title}</div>
        <div className="mds-popup-sort-event-attr">Payload: {event.original.payload ? `${event.original.payload} T` : 'empty'}</div>
      </>
    ),
    [],
  );

  useEffect(() => {
    if (sortRequest > 0) {
      setSnackbarKey((prevKey) => prevKey + 1);
    }
  }, [sortRequest]);

  useEffect(() => {
    if (snackbarKey > 0) {
      setSnackbarOpen(true);
    }
  }, [snackbarKey]);

  return (
    <>
      <Eventcalendar
        ref={calRef}
        cssClass="mds-popup-sort"
        clickToCreate={true}
        data={myEvents}
        dragToCreate={true}
        dragToMove={true}
        dragToResize={true}
        eventOverlap={false}
        resources={sortedResources}
        view={myView}
        renderHeader={myCustomHeader}
        renderResourceHeader={myCustomResourceHeader}
        renderResource={myCustomResource}
        renderTimelineEventContent={myScheduleEvent}
        onPageLoading={handlePageLoading}
        onEventCreated={handleEventCreated}
        onEventDeleted={handleEventDeleted}
        onEventUpdated={handleEventUpdated}
      />
      <Popup
        anchor={popupAnchor}
        buttons={popupButtons}
        contentPadding={false}
        display="anchored"
        focusOnClose={false}
        focusOnOpen={false}
        isOpen={isPopupOpen}
        showOverlay={false}
        width={400}
        onClose={handlePopupClose}
      >
        <div className="mbsc-form-group">
          <div className="mbsc-form-group-title">Metric to calculate and sort by</div>
          <RadioGroup value={tempSortColumn} onChange={handleSortColumnChange}>
            <Radio value="standby" label="Standby Time" description="Time the truck is driven without cargo." />
            <Radio value="payload" label="Payload Efficiency" description="Truck capacity divided by the average cargo on tours." />
            <Radio value="deadhead" label="Deadhead Time" description="Time when the truck is not on a tour." />
          </RadioGroup>
        </div>
        <div className="mbsc-form-group">
          <div className="mbsc-form-group-title">Sort direction</div>
          <SegmentedGroup value={tempSortDirection} onChange={handleSortDirectionChange}>
            <Segmented value="asc">Ascending</Segmented>
            <Segmented value="desc">Descending</Segmented>
          </SegmentedGroup>
        </div>
      </Popup>
      <Snackbar
        key={snackbarKey}
        animation="pop"
        button={snackbarButton}
        cssClass="mds-popup-sort-snackbar"
        display="center"
        duration={3000}
        isOpen={isSnackbarOpen}
        onClose={handleSnackbarClose}
      />
      <Toast message="Resources sorted" isOpen={isToastOpen} onClose={handleToastClose} />
    </>
  );
}

export default App;

Duplicate Session

You have signed in on a different machine. To keep everything in sync, you have been signed out of this session.

If you need to invite team members, manage seats and accounts you can do it from the licenses page.

Duplicate Session

We noticed you are logged in on a different machine and have closed your old session.

If you need to invite team members, manage seats and accounts you can do it from the licenses page.
