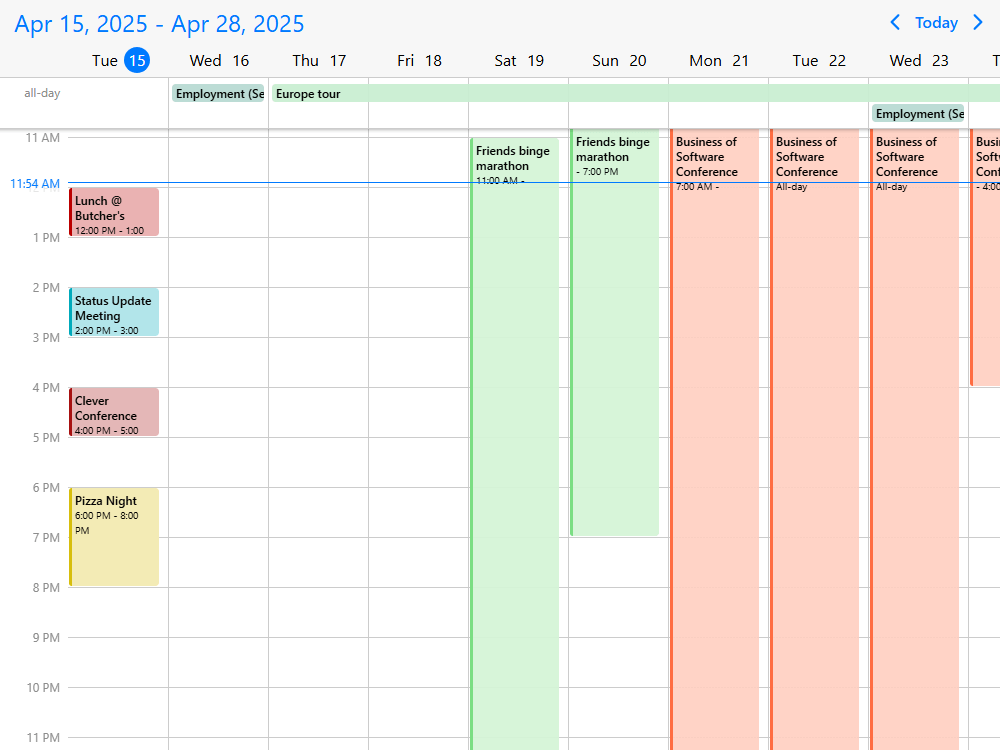

Custom Range View

The scheduler comes with built-in support for day, week and month views. For those situations where a custom range makes more sense, it is possible to override the calendar navigation component with a range picker.

The calendar header can be easily customized and a two-way synchronization needs to be kept between the scheduler and range picker.

Get started with this example

Demo

Loading the live demo

Preview in full screen

Configure the Scheduler with a custom date range view — let users pick any date span from a header range picker instead of fixed day.

Code

View code on GitHub
import { CommonModule } from '@angular/common';
import { HttpClient } from '@angular/common/http';
import { Component, OnInit } from '@angular/core';
import { FormsModule } from '@angular/forms';
import {
  formatDate,
  MbscCalendarEvent,
  MbscDateType,
  MbscEventcalendarOptions,
  MbscEventcalendarView,
  MbscModule,
  setOptions ,
} from '@mobiscroll/angular';

setOptions({
  locale:  ,
  theme: ' ',
  themeVariant: ' '
});

@Component({
  selector: 'app-root',
  templateUrl: './app.component.html',
  standalone: true,
  imports: [CommonModule, FormsModule, MbscModule],
})
export class AppComponent implements OnInit {
  constructor(private http: HttpClient) {}
  startDate!: Date;
  endDate!: Date;
  refDate!: Date;
  selectedDate: MbscDateType = new Date();
  rangeValue: any = [];
  rangeText = '';

  myEvents: MbscCalendarEvent[] = [];
  view = 'calendar';
  calView: MbscEventcalendarView = {
    scheduler: {
      type: 'day',
      size: 14,
    },
  };

  calendarOptions: MbscEventcalendarOptions = {
    onPageLoading: (args) => {
      const end = args.lastDay;
      this.startDate = args.firstDay;
      this.endDate = new Date(end.getFullYear(), end.getMonth(), end.getDate() - 1, 0);
      // Set button text
      this.rangeText = this.getFormattedRange(this.startDate, this.endDate);
      // Set range value
      this.rangeValue = [this.startDate, this.endDate];
      // Navigate the calendar
      this.selectedDate = this.startDate;
    },
  };

  onClose(): void {
    const date = this.rangeValue;
    if (date[0] && date[1]) {
      // Navigate the calendar
      this.selectedDate = date[0];
      this.startDate = date[0];
      this.endDate = date[1];
      // Set calendar view
      this.refDate = date[0];
      this.calView = {
        scheduler: {
          type: 'day',
          size: this.getNrDays(date[0], date[1]),
        },
      };
    } else {
      this.rangeValue = [this.startDate, this.endDate];
    }
  }

  // Returns the formatted date
  getFormattedRange(start: any, end: any): string {
    return (
      formatDate('MMM D, YYYY', new Date(start)) +
      (end && this.getNrDays(start, end) > 1 ? ' - ' + formatDate('MMM D, YYYY', new Date(end)) : '')
    );
  }

  // Returns the number of days between two dates
  getNrDays(start: any, end: any): number {
    return Math.round(Math.abs((end.setHours(0) - start.setHours(0)) / (24 * 60 * 60 * 1000))) + 1;
  }

  ngOnInit(): void {
    this.http
      .jsonp<MbscCalendarEvent[]>('https://trial.mobiscroll.com/events/?vers=5', 'callback')
      .subscribe((resp: MbscCalendarEvent[]) => {
        this.myEvents = resp;
      });
  }
}
