Angular Scheduler Multi-Resource Shared Events

Events can be shared among resources. This can easily be the same resource type, like people in a shared work calendar scenario or different resource types, like aircraft and instructor in a flight training scenario where you'll have to schedule an instructor and an aircraft for a class which is the event.

Shared events will render correctly in the appropriate resource columns with drag & drop, validation across invalid dates and times will work out of the box. All you need to do is to add both resourceIDs to the event.

Get started with this example

Demo

Loading the live demo

Preview in full screen

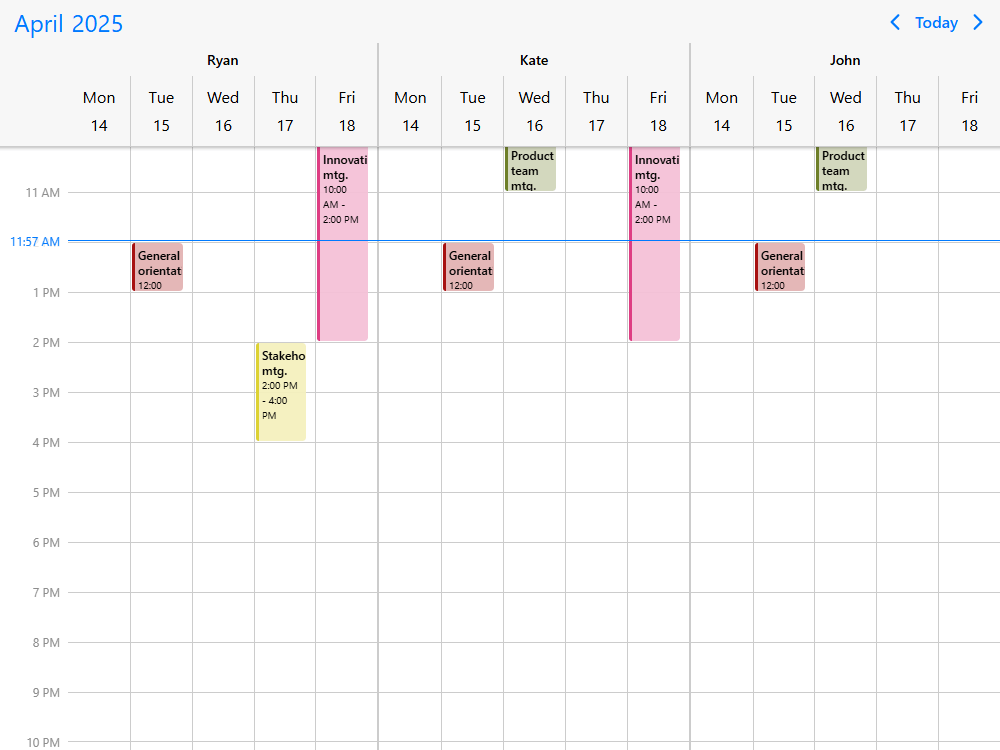

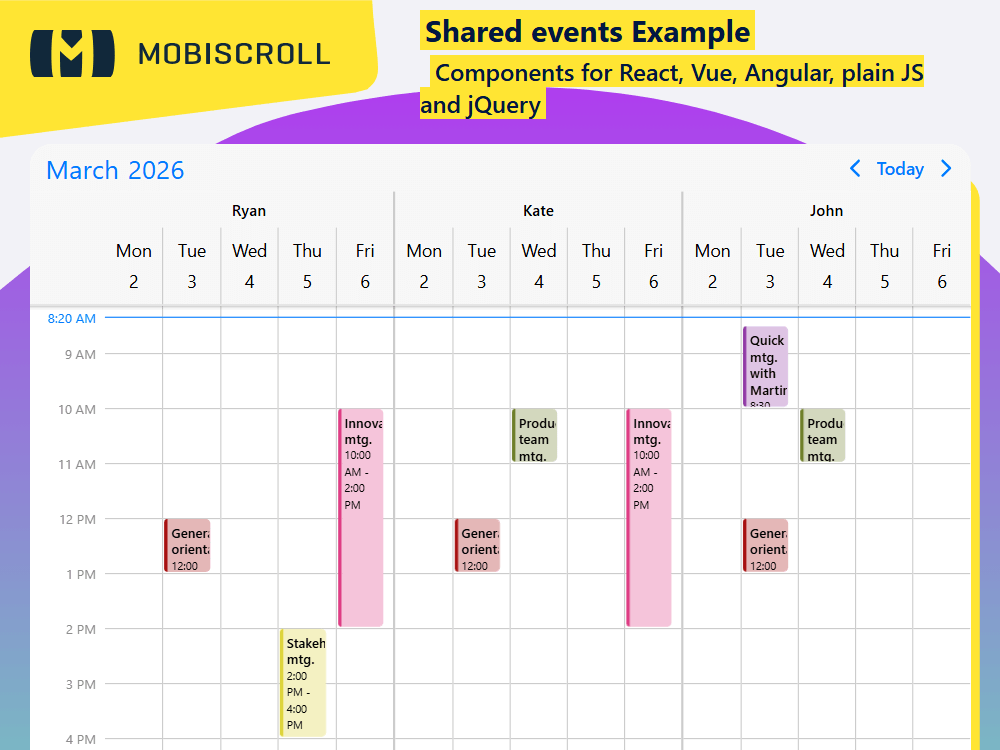

Schedule event across multiple resources in the Scheduler — for shared work calendars, mixed resource types like instructor and aircraft.

Code

View code on GitHub
import { CommonModule } from '@angular/common';
import { Component, ViewChild } from '@angular/core';
import { FormsModule } from '@angular/forms';
import {
  MbscCalendarEvent,
  MbscEventcalendarView,
  MbscEventClickEvent,
  MbscEventCreatedEvent,
  MbscModule,
  MbscPopup,
  MbscPopupButton,
  MbscPopupOptions,
  MbscPopupPredefinedButton,
  setOptions ,
} from '@mobiscroll/angular';

setOptions({
  locale:  ,
  theme: ' ',
  themeVariant: ' '
});

@Component({
  selector: 'app-root',
  templateUrl: './app.component.html',
  standalone: true,
  imports: [CommonModule, FormsModule, MbscModule],
})
export class AppComponent {
  @ViewChild('popup', { static: false })
  popup!: MbscPopup;

  tempEvent!: MbscCalendarEvent;
  title = '';
  participants = [];
  anchor: HTMLElement | undefined;
  isNewEvent = false;

  view: MbscEventcalendarView = {
    scheduler: {
      type: 'week',
      allDay: false,
      startDay: 1,
      endDay: 5,
      startTime: '05:00',
      endTime: '22:00',
    },
  };

  myEvents: MbscCalendarEvent[] = [
    {
      start: '2026-11-06T10:00',
      end: '2026-11-06T15:00',
      title: 'Impact Training',
      resource: [2, 3],
      color: '#35bb5a',
    },
    {
      start: '2026-11-07T10:00',
      end: '2026-11-07T15:00',
      title: 'Impact Training',
      resource: [2, 3],
      color: '#35bb5a',
    },
    {
      start: '2026-11-09T08:30',
      end: '2026-11-09T10:00',
      title: 'Quick mtg. with Martin',
      resource: 3,
      color: '#913aa7',
    },
    {
      start: '2026-11-09T12:00',
      end: '2026-11-09T13:00',
      title: 'General orientation',
      resource: [1, 2, 3],
      color: '#a71111',
    },
    {
      start: '2026-11-10T10:00',
      end: '2026-11-10T11:00',
      title: 'Product team mtg.',
      resource: [2, 3],
      color: '#6e7f29',
    },
    {
      start: '2026-11-11T14:00',
      end: '2026-11-11T16:00',
      title: 'Stakeholder mtg.',
      resource: 1,
      color: '#dcd234',
    },
    {
      start: '2026-11-12T10:00',
      end: '2026-11-12T14:00',
      title: 'Innovation mtg.',
      resource: [1, 2],
      color: '#de3d83',
    },
  ];

  myResources = [
    {
      id: 1,
      name: 'Ryan',
      color: '#f7c4b4',
    },
    {
      id: 2,
      name: 'Kate',
      color: '#c6f1c9',
    },
    {
      id: 3,
      name: 'John',
      color: '#e8d0ef',
    },
  ];

  popupOptions: MbscPopupOptions = {
    display: 'anchored',
    contentPadding: false,
    touchUi: false,
    width: 350,
  };

  buttons: (MbscPopupButton | MbscPopupPredefinedButton)[] = [
    'cancel',
    {
      text: 'OK',
      keyCode: 'enter',
      handler: () => {
        this.tempEvent.resource = this.participants;
        this.tempEvent.title = this.title;

        if (this.isNewEvent) {
          this.myEvents = [...this.myEvents, this.tempEvent];
        } else {
          this.myEvents = [...this.myEvents];
        }
        this.isNewEvent = false;
        this.popup.close();
      },
      cssClass: 'mbsc-popup-button-primary',
    },
  ];

  showPopup(args: any): void {
    setTimeout(() => {
      const event = args.event;
      const resources = Array.isArray(event.resource) ? event.resource : [event.resource];

      // Store temporary event
      this.tempEvent = event;

      // Fill popup with the current event data
      this.title = event.title;
      this.participants = resources;

      // Set anchor for the popup
      this.anchor = args.target ? args.target : args.domEvent.target;
      this.popup.open();
    });
  }

  onEventCreated(args: MbscEventCreatedEvent): void {
    this.isNewEvent = true;
    this.showPopup(args);
  }

  onEventDoubleClick(args: MbscEventClickEvent): void {
    this.isNewEvent = false;
    this.showPopup(args);
  }

  extendDefaultEvent(): MbscCalendarEvent {
    return { color: '#4a9e42' };
  }

  onClose(): void {
    if (this.isNewEvent) {
      this.myEvents = this.myEvents.filter((item) => item.id !== this.tempEvent.id);
    }
  }
}
