Vue Scheduler Doctors Availability

You can tailor the scheduler to show availability per doctor using visual indicators in each column. Availability is marked with a green status track on the left side of each doctor's column, making open slots easy to spot and supporting quick scheduling decisions.

To create the visual indicator, we added extra resource columns with a narrow width, styled using a custom CSS class set via the cssClass property in the resource data. The availability track is shown using events placed on these columns, with their content hidden via schedulerEvent option and resized responsively based on the narrow resource column width. Time ranges outside each doctor's working hours are disabled to reflect their actual schedule.

Get started with this example

Demo

Loading the live demo

Preview in full screen

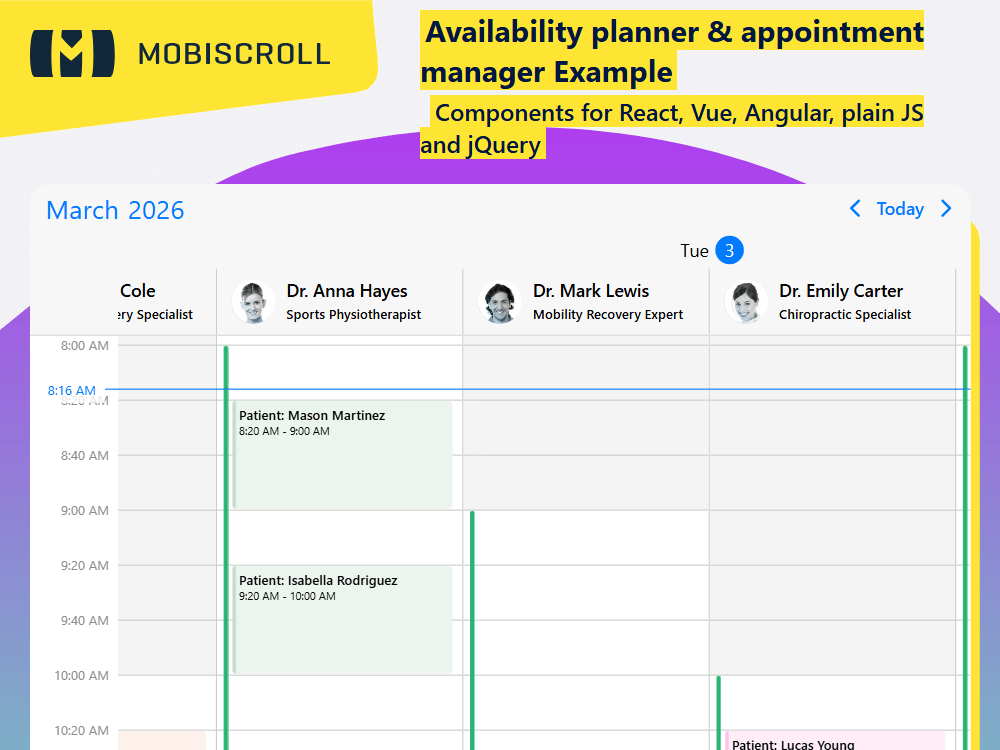

Show per-doctor availability in the Scheduler — color-coded tracks mark open appointment slots, with each doctor's working hours.

Code

View code on GitHub
<script setup>
import { MbscEventcalendar, MbscToast, setOptions  } from '@mobiscroll/vue'
import { ref } from 'vue'

setOptions({
  locale:  ,
  theme: ' ',
  themeVariant: ' '
})

const isToastOpen = ref(false)
const toastMessage = ref('')

const myEvents = [
  {
    id: 1,
    resource: 2,
    tooltip: 'Availability: 10:00 - 18:00',
    start: '10:00',
    end: '18:00',
    recurring: { repeat: 'daily' },
    type: 'availability',
    editable: false
  },
  {
    id: 2,
    resource: 4,
    tooltip: 'Availability: 08:00 - 16:00',
    start: '08:00',
    end: '16:00',
    recurring: { repeat: 'daily' },
    type: 'availability',
    editable: false
  },
  {
    id: 3,
    resource: 6,
    tooltip: 'Availability: 09:00 - 17:00',
    start: '09:00',
    end: '17:00',
    recurring: { repeat: 'daily' },
    type: 'availability',
    editable: false
  },
  {
    id: 4,
    resource: 8,
    tooltip: 'Availability: 10:00 - 18:00',
    start: '10:00',
    end: '18:00',
    recurring: { repeat: 'daily' },
    type: 'availability',
    editable: false
  },
  // Showing partial data. Download full source.
]

const myResources = [
  {
    id: 2,
    color: 'rgb(40, 179, 114)',
    cssClass: 'mds-healthcare-res-col-bar'
  },
  {
    id: 1,
    name: 'Dr. James Cole',
    color: 'rgba(255, 204, 193)',
    cssClass: 'mds-healthcare-res-col',
    description: 'Injury Recovery Specialist',
    img: 'https://img.mobiscroll.com/demos/m4.png'
  },
  {
    id: 4,
    color: 'rgb(40, 179, 114)',
    eventCreation: false,
    cssClass: 'mds-healthcare-res-col-bar'
  },
  {
    id: 3,
    name: 'Dr. Anna Hayes',
    color: 'rgb(193, 221, 195)',
    cssClass: 'mds-healthcare-res-col',
    description: 'Sports Physiotherapist',
    img: 'https://img.mobiscroll.com/demos/f3.png'
  },
  {
    id: 6,
    color: 'rgb(40, 179, 114)',
    eventCreation: false,
    cssClass: 'mds-healthcare-res-col-bar'
  },
  {
    id: 5,
    name: 'Dr. Mark Lewis',
    color: 'rgb(134, 224, 193)',
    cssClass: 'mds-healthcare-res-col',
    description: 'Mobility Recovery Expert',
    img: 'https://img.mobiscroll.com/demos/m3.png'
  },
  {
    id: 8,
    color: 'rgb(40, 179, 114)',
    eventCreation: false,
    cssClass: 'mds-healthcare-res-col-bar'
  },
  {
    id: 7,
    name: 'Dr. Emily Carter',
    color: 'rgb(255, 193, 228)',
    cssClass: 'mds-healthcare-res-col',
    description: 'Chiropractic Specialist',
    img: 'https://img.mobiscroll.com/demos/f1.png'
  },
  {
    id: 10,
    color: 'rgb(40, 179, 114)',
    eventCreation: false,
    cssClass: 'mds-healthcare-res-col-bar'
  },
  {
    id: 9,
    name: 'Dr. Robert Stone',
    color: 'rgb(193, 204, 255)',
    cssClass: 'mds-healthcare-res-col',
    description: 'Orthopedic Surgeon',
    img: 'https://img.mobiscroll.com/demos/m2.png'
  },
  {
    id: 12,
    color: 'rgb(40, 179, 114)',
    eventCreation: false,
    cssClass: 'mds-healthcare-res-col-bar'
  },
  {
    id: 11,
    name: 'Dr. Sophia Miller',
    color: 'rgb(255, 223, 176)',
    cssClass: 'mds-healthcare-res-col',
    description: 'Sports Physiotherapist',
    img: 'https://img.mobiscroll.com/demos/f2.png'
  }
]

const myInvalids = [
  { resource: [1, 2], start: '00:00', end: '10:00', recurring: { repeat: 'daily' } },
  { resource: [1, 2], start: '18:00', end: '24:00', recurring: { repeat: 'daily' } },
  { resource: [3, 4], start: '00:00', end: '08:00', recurring: { repeat: 'daily' } },
  { resource: [3, 4], start: '16:00', end: '24:00', recurring: { repeat: 'daily' } },
  { resource: [5, 6], start: '00:00', end: '09:00', recurring: { repeat: 'daily' } },
  { resource: [5, 6], start: '17:00', end: '24:00', recurring: { repeat: 'daily' } },
  { resource: [7, 8], start: '00:00', end: '10:00', recurring: { repeat: 'daily' } },
  { resource: [7, 8], start: '18:00', end: '24:00', recurring: { repeat: 'daily' } },
  { resource: [9, 10], start: '00:00', end: '08:00', recurring: { repeat: 'daily' } },
  { resource: [9, 10], start: '16:00', end: '24:00', recurring: { repeat: 'daily' } },
  { resource: [11, 12], start: '00:00', end: '09:00', recurring: { repeat: 'daily' } },
  { resource: [11, 12], start: '17:00', end: '24:00', recurring: { repeat: 'daily' } }
]

const myView = {
  scheduler: {
    type: 'week',
    startDay: 1,
    endDay: 5,
    startTime: '08:00',
    endTime: '18:00',
    timeCellStep: 20,
    timeLabelStep: 20,
    allDay: false
  }
}

function showToast(message) {
  toastMessage.value = message
  isToastOpen.value = true
}
</script>

<template>
  <MbscEventcalendar :clickToCreate="" :dragToCreate="" :dragToMove="" :dragToResize="" :eventDelete=""
    cssClass="mds-healthcare"
    groupBy="date"
    :data="myEvents"
    :dragTimeStep="20"
    :eventOverlap="false"
    :invalid="myInvalids"
    :resources="myResources"
    :view="myView"
    @event-created="showToast('Appointment created')"
    @event-deleted="showToast('Appointment deleted')"
    @event-updated="showToast('Appointment updated')"
  >
    <template #resource="resource">
      <div v-if="resource.cssClass === 'mds-healthcare-res-col'" class="mbsc-flex">
        <img
          class="mds-healthcare-res-avatar mbsc-flex-none"
          :alt="resource.name"
          :src="resource.img"
        />
        <div class="mds-healthcare-res-cont mbsc-flex-1-1">
          <div class="mds-healthcare-res-name">{{ resource.name }}</div>
          <div class="mds-healthcare-res-desc">{{ resource.description }}</div>
        </div>
      </div>
    </template>
    <template #schedulerEventContent="data">
      <template v-if="!data.original.type">
        Patient: {{ data.title === 'New event' ? 'John Doe' : data.title }}
      </template>
    </template>
  </MbscEventcalendar>
  <MbscToast :message="toastMessage" :isOpen="isToastOpen" @close="isToastOpen = false" />
</template>

<style>
.mds-healthcare .mbsc-schedule-time-col,
.mds-healthcare .mbsc-schedule-time-wrapper {
  width: 80px;
}

.mds-healthcare .mbsc-schedule-resource-title {
  padding: 0;
}

.mds-healthcare-res-col {
  width: 210px;
  border: 0 !important;
}

/* Availability column */

.mds-healthcare-res-col-bar {
  width: 14px;
}

.mds-healthcare-res-col-bar .mbsc-schedule-event {
  margin-left: 5px;
}

.mds-healthcare-res-col-bar .mbsc-schedule-event-range {
  display: none;
}

.mds-healthcare-res-col-bar .mbsc-schedule-event-bar {
  width: 4px;
  border-radius: 3px;
}

/* Resource header */

.mds-healthcare-res-cont {
  padding: 10px;
  font-weight: 500;
  text-align: start;
}

.mds-healthcare-res-name {
  font-size: 16px;
  font-weight: 600;
  line-height: 20px;
}

.mds-healthcare-res-desc {
  font-size: 12px;
  line-height: 14px;
  margin-top: 4px;
}

.mds-healthcare-res-avatar {
  height: 40px;
  width: 40px;
  margin: 10px 0;
}
</style>
