Custom Event Tooltip

There are several approaches to showing a tooltip when hovering events.

The native tooltip

By default, the calendar shows the browser native tooltip when hovering over the event. This includes the times and title of the event, which does the job most of the times. For showing a custom text use the tooltip property of the data object. This tooltip is specific to every event. If you want to hide the native tooltip, you can set the showEventTooltip to false.

Fully custom tooltip

Setting the showEventTooltip to false gives room for a fully custom tooltip that can be implemented by using the event-hover-in and event-hover-out lifecycle events. With the help of the Mobiscroll popup you can show a custom tooltip that holds details, actions applicable to the event it is anchored to.

Showing a third party popup

There are cases when you are using a third party library, something like md-boostrap. For those cases, turn the browser native tooltip off with the showEventTooltip option and use the third-party tooltip accordingly. In case of md-boostrap, you can add the tooltip directive to the custom event template so that the library knows where and when to show the tooltip.

Get started with this example

Demo

Loading the live demo

Preview in full screen

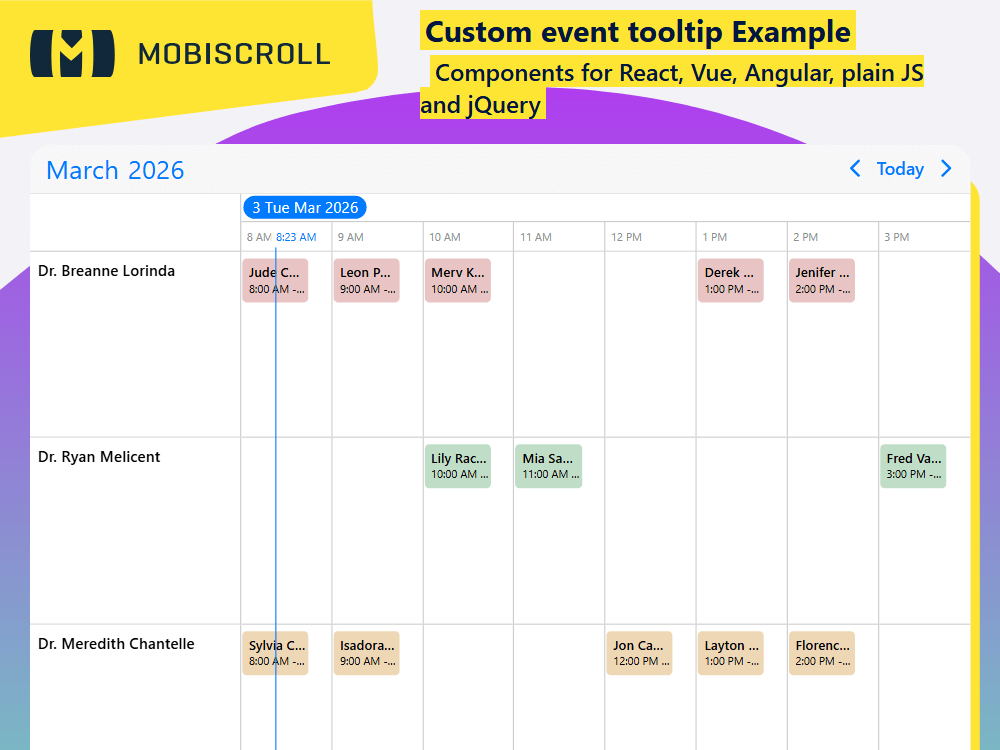

Display native, custom Mobiscroll, or third-party tooltips on Timeline events — control hover behavior with event hover callbacks.

Code

View code on GitHub
<script setup>
import {
  formatDate,
  MbscButton,
  MbscEventcalendar,
  MbscPopup,
  MbscToast,
  setOptions
} from '@mobiscroll/vue'
import { ref } from 'vue'

setOptions({
  locale:  ,
  theme: ' ',
  themeVariant: ' '
})

const doctors = [
  { id: 1, name: 'Dr. Breanne Lorinda', color: '#b33d3d' },
  { id: 2, name: 'Dr. Ryan Melicent', color: '#309346' },
  { id: 3, name: 'Dr. Meredith Chantelle', color: '#c77c0a' }
]

const appointments = ref([
  {
    title: 'Jude Chester',
    age: 69,
    start: '2026-10-20T08:00',
    end: '2026-10-20T08:45',
    confirmed: false,
    reason: 'Headaches morning & afternoon',
    location: 'Topmed, Building A, Room 203',
    resource: 1
  },
  {
    title: 'Leon Porter',
    age: 44,
    start: '2026-10-20T09:00',
    end: '2026-10-20T09:45',
    confirmed: false,
    reason: 'Left abdominal pain',
    location: 'Topmed, Building D, Room 360',
    resource: 1
  },
  {
    title: 'Merv Kenny',
    age: 56,
    start: '2026-10-20T10:00',
    end: '2026-10-20T10:45',
    confirmed: true,
    reason: 'Itchy, red rashes',
    location: 'Topmed, Building D, Room 360',
    resource: 1
  },
  {
    title: 'Derek Austyn',
    age: 72,
    start: '2026-10-20T13:00',
    end: '2026-10-20T13:45',
    confirmed: false,
    reason: 'Nausea & weakness',
    location: 'Rose Medical Center, Room 18',
    resource: 1
  },
  {
    title: 'Jenifer Kalyn',
    age: 65,
    start: '2026-10-20T14:00',
    end: '2026-10-20T14:45',
    confirmed: true,
    reason: 'Cough & fever',
    location: 'Rose Medical Center, Room 18',
    resource: 1
  },
  {
    title: 'Lily Racquel',
    age: 54,
    start: '2026-10-20T10:00',
    end: '2026-10-20T10:45',
    confirmed: true,
    reason: 'Dry, persistent cough & headache',
    location: 'Procare, Building C, Room 12',
    resource: 2
  },
  {
    title: 'Mia Sawyer',
    age: 59,
    start: '2026-10-20T11:00',
    end: '2026-10-20T11:45',
    confirmed: true,
    reason: 'Difficulty sleeping & loss of appetite',
    location: 'Procare, Building C, Room 12',
    resource: 2
  },
  {
    title: 'Fred Valdez',
    age: 62,
    start: '2026-10-20T15:00',
    end: '2026-10-20T15:45',
    confirmed: false,
    reason: 'High blood pressure',
    location: 'Procare, Building C, Room 40',
    resource: 2
  },
  {
    title: 'Sylvia Cale',
    age: 41,
    start: '2026-10-20T08:00',
    end: '2026-10-20T08:45',
    confirmed: false,
    reason: 'Fever & sore throat',
    location: 'MedStar, Building A, Room 1',
    resource: 3
  },
  {
    title: 'Isadora Lyric',
    age: 30,
    start: '2026-10-20T09:00',
    end: '2026-10-20T09:45',
    confirmed: false,
    reason: 'Constant tiredness & weakness',
    location: 'MedStar, Building A, Room 1',
    resource: 3
  },
  {
    title: 'Jon Candace',
    age: 63,
    start: '2026-10-20T12:00',
    end: '2026-10-20T12:45',
    confirmed: true,
    reason: 'Nausea & weakness',
    location: 'MedStar, Building A, Room 1',
    resource: 3
  },
  {
    title: 'Layton Drake',
    age: 57,
    start: '2026-10-20T13:00',
    end: '2026-10-20T13:45',
    confirmed: true,
    reason: 'Headaches & loss of appetite',
    location: 'Vitalife, Room 160',
    resource: 3
  },
  {
    title: 'Florence Amy',
    age: 73,
    start: '2026-10-20T14:00',
    end: '2026-10-20T14:45',
    confirmed: false,
    reason: 'Dry, persistent cough & headache',
    location: 'Vitalife, Room 160',
    resource: 3
  },
  {
    title: 'Willis Kane',
    age: 44,
    start: '2026-10-21T08:00',
    end: '2026-10-21T08:45',
    confirmed: true,
    reason: 'Back pain',
    location: 'Care Cente, Room 320r',
    resource: 1
  },
  {
    title: 'Theo Calanthia',
    age: 60,
    start: '2026-10-21T09:00',
    end: '2026-10-21T09:45',
    confirmed: true,
    reason: 'Anxiousness & sleeping disorder',
    location: 'Care Center, Room 320',
    resource: 1
  },
  {
    title: 'Ford Kaiden',
    age: 53,
    start: '2026-10-21T14:00',
    end: '2026-10-21T14:45',
    confirmed: true,
    reason: 'Nausea & vomiting',
    location: 'Care Center, Room 206',
    resource: 1
  },
  {
    title: 'Jewell Ryder',
    age: 75,
    start: '2026-10-21T15:00',
    end: '2026-10-21T15:45',
    confirmed: false,
    reason: 'High blood pressure',
    location: 'Care Center, Room 206',
    resource: 1
  },
  {
    title: 'Antonia Cindra',
    age: 48,
    start: '2026-10-21T12:00',
    end: '2026-10-21T12:45',
    confirmed: true,
    reason: 'Dry, persistent cough',
    location: 'Medica Zone, Building C, Room 2',
    resource: 3
  },
  {
    title: 'Gerry Irma',
    age: 50,
    start: '2026-10-21T13:00',
    end: '2026-10-21T13:45',
    confirmed: false,
    reason: 'Fever & sore throat',
    location: 'Medica Zone, Building C, Room 2',
    resource: 3
  },
  {
    title: 'Carlyn Dorothy',
    age: 36,
    start: '2026-10-21T14:00',
    end: '2026-10-21T14:45',
    confirmed: true,
    reason: 'Tiredness & muscle pain',
    location: 'Medica Zone, Building C, Room 2',
    resource: 3
  },
  {
    title: 'Alma Potter',
    age: 74,
    start: '2026-10-19T10:00',
    end: '2026-10-19T10:45',
    confirmed: true,
    reason: 'High blood pressure',
    location: 'Vitacure, Building D, Room 2',
    resource: 1
  },
  {
    title: 'Debra Aguilar',
    age: 47,
    start: '2026-10-19T11:00',
    end: '2026-10-19T11:45',
    confirmed: false,
    reason: 'Fever & sore throat',
    location: 'Vitacure, Building D, Room 2',
    resource: 1
  },
  {
    title: 'Tommie Love',
    age: 42,
    start: '2026-10-19T12:00',
    end: '2026-10-19T12:45',
    confirmed: false,
    reason: 'Dry, persistent cough & headache',
    location: 'Vitacure, Building D, Room 2',
    resource: 1
  },
  {
    title: 'Marjorie White',
    age: 55,
    start: '2026-10-19T13:00',
    end: '2026-10-19T13:45',
    confirmed: true,
    reason: 'Back pain',
    location: 'Vitacure, Building D, Room 2',
    resource: 1
  },
  {
    title: 'Brandon Perkins',
    age: 68,
    start: '2026-10-19T14:00',
    end: '2026-10-19T14:45',
    confirmed: true,
    reason: 'Swollen ankles',
    location: 'Vitacure, Building D, Room 2',
    resource: 1
  },
  {
    title: 'Lora Wilson',
    age: 66,
    start: '2026-10-19T15:00',
    end: '2026-10-19T15:45',
    confirmed: false,
    reason: 'Fever & headache',
    location: 'Vitacure, Building D, Room 2',
    resource: 1
  },
  {
    title: 'Ismael Bates',
    age: 58,
    start: '2026-10-19T08:00',
    end: '2026-10-19T08:45',
    confirmed: false,
    reason: 'Tiredness & muscle pain',
    location: 'Care Center, Room 300',
    resource: 2
  },
  {
    title: 'Archie Wilkins',
    age: 69,
    start: '2026-10-19T09:00',
    end: '2026-10-19T09:45',
    confirmed: true,
    reason: 'Fever & headache',
    location: 'Care Center, Room 300',
    resource: 2
  },
  {
    title: 'Christie Baker',
    age: 71,
    start: '2026-10-19T10:00',
    end: '2026-10-19T10:45',
    confirmed: true,
    reason: 'Headaches morning & afternoon',
    location: 'Care Center, Room 300',
    resource: 2
  },
  {
    title: 'Laura Shelton',
    age: 45,
    start: '2026-10-19T12:00',
    end: '2026-10-19T12:45',
    confirmed: false,
    reason: 'Dry, persistent cough',
    location: 'Care Center, Room 300',
    resource: 2
  },
  {
    title: 'Mary Hudson',
    age: 77,
    start: '2026-10-19T09:00',
    end: '2026-10-19T09:45',
    confirmed: true,
    reason: 'Fever & sore throat',
    location: 'Medica Zone, Room 45',
    resource: 3
  },
  {
    title: 'Ralph Rice',
    age: 64,
    start: '2026-10-19T10:00',
    end: '2026-10-19T10:45',
    confirmed: true,
    reason: 'Left abdominal pain',
    location: 'Medica Zone, Room 45',
    resource: 3
  },
  {
    title: 'Marc Hoffman',
    age: 53,
    start: '2026-10-19T12:00',
    end: '2026-10-19T12:45',
    confirmed: true,
    reason: 'Dry, persistent cough & headache',
    location: 'Medica Zone, Room 45',
    resource: 3
  },
  {
    title: 'Arlene Lyons',
    age: 41,
    start: '2026-10-19T14:00',
    end: '2026-10-19T14:45',
    confirmed: true,
    reason: 'Nausea & weakness',
    location: 'Care Center, Room 202',
    resource: 3
  },
  {
    title: 'Thelma Shaw',
    age: 26,
    start: '2026-10-19T15:00',
    end: '2026-10-19T15:45',
    confirmed: true,
    reason: 'Anxiousness & sleeping disorder',
    location: 'Care Center, Room 202',
    resource: 3
  },
  {
    title: 'Dory Edie',
    age: 45,
    start: '2026-10-18T09:00',
    end: '2026-10-18T09:45',
    confirmed: true,
    reason: 'Right abdominal pain',
    location: 'Vitacure, Building A, Room 203',
    resource: 2
  },
  {
    title: 'Kaylin Toni',
    age: 68,
    start: '2026-10-18T10:00',
    end: '2026-10-18T10:45',
    confirmed: true,
    reason: 'Itchy, red rashes',
    location: 'Vitacure, Building A, Room 203',
    resource: 2
  },
  {
    title: 'Gray Kestrel',
    age: 60,
    start: '2026-10-18T12:00',
    end: '2026-10-18T12:45',
    confirmed: true,
    reason: 'Cough & fever',
    location: 'Vitacure, Building A, Room 203',
    resource: 2
  },
  {
    title: 'Reg Izabelle',
    age: 41,
    start: '2026-10-18T14:00',
    end: '2026-10-18T14:45',
    confirmed: true,
    reason: 'Fever & headache',
    location: 'Medica Zone, Room 13',
    resource: 2
  },
  {
    title: 'Lou Andie',
    age: 76,
    start: '2026-10-18T15:00',
    end: '2026-10-18T15:45',
    confirmed: true,
    reason: 'High blood pressure',
    location: 'Medica Zone, Room 13',
    resource: 2
  },
  {
    title: 'Yancy Dustin',
    age: 52,
    start: '2026-10-18T10:00',
    end: '2026-10-18T10:45',
    confirmed: true,
    reason: 'Fever & headache',
    location: 'Vitacure, Building E, Room 50',
    resource: 3
  },
  {
    title: 'Terry Clark',
    age: 78,
    start: '2026-10-18T11:00',
    end: '2026-10-18T11:45',
    confirmed: true,
    reason: 'Swollen ankles',
    location: 'Vitacure, Building E, Room 50',
    resource: 3
  }
])

const appointment = ref()
const appointmentInfo = ref()
const appointmentLocation = ref()
const appointmentReason = ref()
const appointmentStatus = ref()
const appointmentTime = ref()
const buttonText = ref()
const buttonType = ref()
const isTooltipOpen = ref(false)
const isToastOpen = ref(false)
const toastMessage = ref('')
const tooltipAnchor = ref()
const tooltipColor = ref()
const timer = ref()

const myView = ref({
  timeline: {
    type: 'day',
    startDay: 1,
    endDay: 5,
    startTime: '08:00',
    endTime: '16:00'
  }
})

function openTooltip(args) {
  const event = args.event
  const doctor = args.resourceObj
  const time =
    formatDate('hh:mm A', new Date(event.start)) +
    ' - ' +
    formatDate('hh:mm A', new Date(event.end))

  if (timer.value) {
    clearTimeout(timer.value)
    timer.value = null
  }

  if (event.confirmed) {
    appointmentStatus.value = 'Confirmed'
    buttonText.value = 'Cancel appointment'
    buttonType.value = 'warning'
  } else {
    appointmentStatus.value = 'Canceled'
    buttonText.value = 'Confirm appointment'
    buttonType.value = 'success'
  }

  appointment.value = event
  appointmentInfo.value = event.title + ', Age: ' + event.age
  appointmentLocation.value = event.location
  appointmentTime.value = time
  appointmentReason.value = event.reason

  tooltipColor.value = doctor.color
  tooltipAnchor.value = args.domEvent.target.closest('.mbsc-timeline-event')

  isTooltipOpen.value = true
}

function handleEventClick(args) {
  openTooltip(args)
}

function handleEventDragStart() {
  isTooltipOpen.value = false
}

function handleEventHoverIn(args) {
  openTooltip(args)
}

function handleEventHoverout() {
  if (!timer.value) {
    timer.value = setTimeout(() => {
      isTooltipOpen.value = false
    }, 200)
  }
}

function handleMouseEnter() {
  if (timer.value) {
    clearTimeout(timer.value)
    timer.value = null
  }
}

function handleMouseLeave() {
  timer.value = setTimeout(() => {
    isTooltipOpen.value = false
  }, 200)
}

function updateAppointmentStatus() {
  appointment.value.confirmed = !appointment.value.confirmed
  toastMessage.value = 'Appointment ' + (appointment.value.confirmed ? 'confirmed' : 'canceled')
  isToastOpen.value = true
  isTooltipOpen.value = false
}

function viewAppointmentFile() {
  toastMessage.value = 'View file'
  isToastOpen.value = true
  isTooltipOpen.value = false
}

function deleteAppointment() {
  appointments.value = appointments.value.filter((item) => item.id !== appointment.value.id)
  toastMessage.value = 'Appointment deleted'
  isToastOpen.value = true
  isTooltipOpen.value = false
}
</script>

<template>
  <MbscEventcalendar
    :clickToCreate="false"
    :dragToCreate="false"
    :dragToMove="true"
    :dragToResize="false"
    :data="appointments"
    :resources="doctors"
    :showEventTooltip="false"
    :view="myView"
    @event-click="handleEventClick"
    @event-drag-start="handleEventDragStart"
    @event-hover-in="handleEventHoverIn"
    @event-hover-out="handleEventHoverout"
  />
  <MbscPopup
    display="anchored"
    :anchor="tooltipAnchor"
    :contentPadding="false"
    :isOpen="isTooltipOpen"
    :scrollLock="false"
    :showOverlay="false"
    :touchUi="false"
    :width="380"
    @close="isTooltipOpen = false"
  >
    <div class="mds-tooltip" @mouseenter="handleMouseEnter()" @mouseleave="handleMouseLeave()">
      <div class="mds-tooltip-header" :style="{ background: tooltipColor }">
        <span>{{ appointmentInfo }}</span>
        <span class="mbsc-pull-right">{{ appointmentTime }}</span>
      </div>
      <div class="mbsc-padding">
        <div class="md-tooltip-title">
          Status: <span class="mds-tooltip-label mbsc-margin">{{ appointmentStatus }}</span>
          <MbscButton
            :color="buttonType"
            variant="outline"
            className="mds-tooltip-button mbsc-pull-right"
            @click="updateAppointmentStatus()"
          >
            {{ buttonText }}
          </MbscButton>
        </div>
        <div class="mds-tooltip-label mbsc-margin">
          Reason for visit: <span class="mbsc-light">{{ appointmentReason }}</span>
        </div>
        <div class="mds-tooltip-label mbsc-margin">
          Location: <span class="mbsc-light">{{ appointmentLocation }}</span>
        </div>
        <MbscButton color="secondary" className="mds-tooltip-button" @click="viewAppointmentFile()">
          View patient file
        </MbscButton>
        <MbscButton
          color="danger"
          variant="outline"
          className="mds-tooltip-button mbsc-pull-right"
          @click="deleteAppointment()"
        >
          Delete appointment
        </MbscButton>
      </div>
    </div>
  </MbscPopup>
  <MbscToast :message="toastMessage" :isOpen="isToastOpen" @close="isToastOpen = false" />
</template>

<style>
.mds-tooltip {
  font-size: 15px;
  font-weight: 600;
}

.mds-tooltip-header {
  padding: 12px 16px;
  color: #eee;
}

.mds-tooltip-label {
  line-height: 32px;
}

.mds-tooltip-button.mbsc-button {
  font-size: 16px;
  margin: 0;
  line-height: 32px;
  padding-top: 0;
  padding-bottom: 0;
}

.mds-tooltip-button .mbsc-button-txt {
  font-size: 14px;
  padding-left: 0;
  padding-right: 0;
}
</style>

Duplicate Session

You have signed in on a different machine. To keep everything in sync, you have been signed out of this session.

If you need to invite team members, manage seats and accounts you can do it from the licenses page.

Duplicate Session

We noticed you are logged in on a different machine and have closed your old session.

If you need to invite team members, manage seats and accounts you can do it from the licenses page.
